Closewatch Livestock Farming Grant System

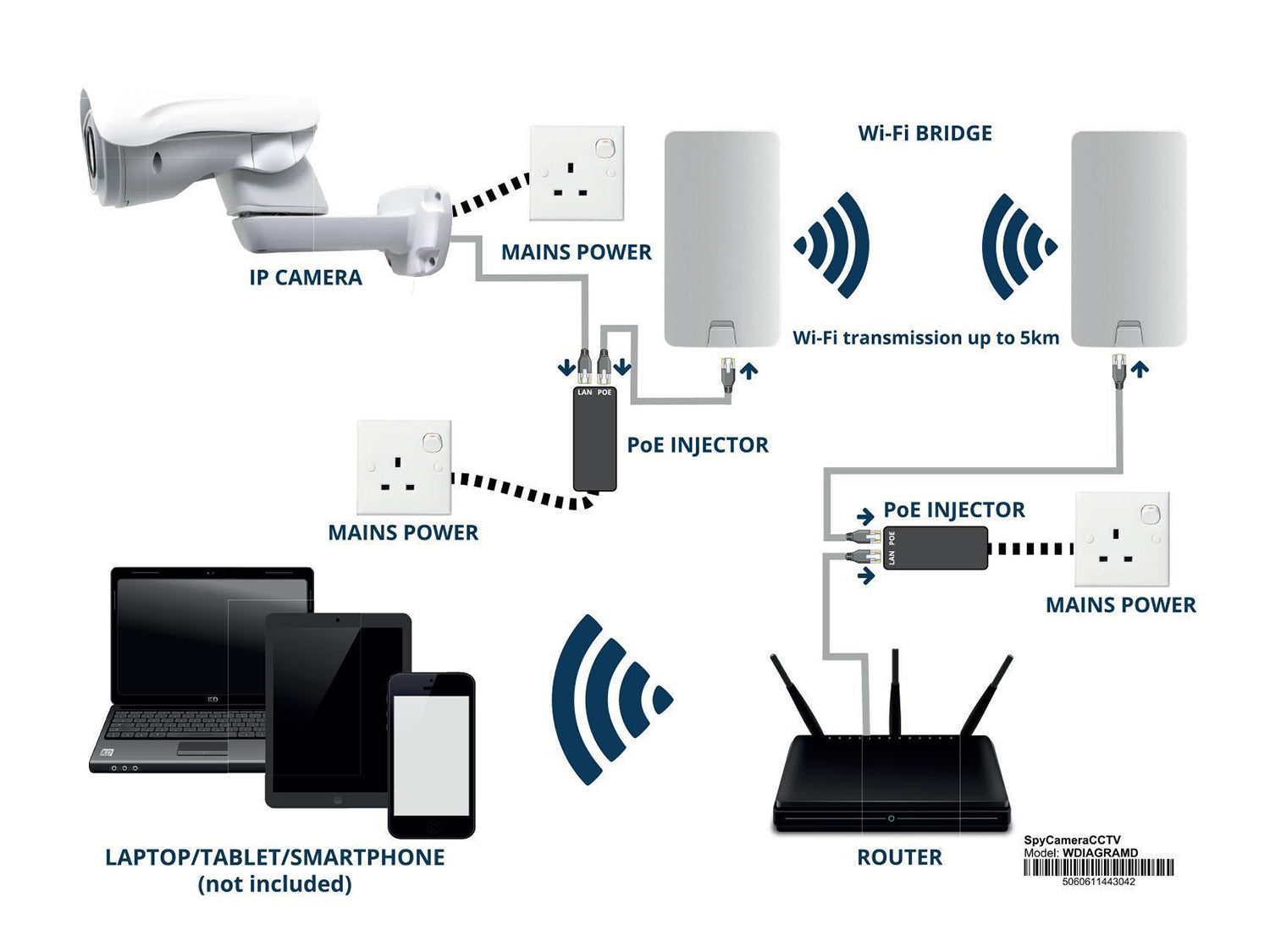

The camera connects to your home's internet using a long-range WiFi bridge, capable of sending the signal up to 3km in direct line of sight, essential for farms spread over large properties. Once configured to your network, the software not only lets you move the camera but also includes their latest smart detection features. Settings such as line crossing and object removal detection let you easily automate monitoring. You can even add one of our PTZ joysticks, putting the camera controls right at your fingertips.

The camera itself is probably the most advanced to have ever been added to one of our livestock CCTV systems. It boasts 25x optical zoom, letting you move from a wide-angle to a view focusing on one animal's face. At the top end of the zoom, the IR LEDs provide up to 100m night vision, automatically reducing power for closer subjects. The 4MP sensor can even record in full colour right down to 0.003 lux, ideal for badly lit interiors.

Camera
Image Sensor: 1/2.8 progressive scan CMOS
Min. Illumination: Colour: 0.005 Lux; B/W: 0.001Lux @ F1.6 AGC ON; 0 Lux with IR
White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain: Auto/Manual
Shutter Time: 1/1 s to 1/30000 s
Day & Night: IR Cut Filter
Digital Zoom: 16x
Privacy Mask: 24 programmable privacy masks
Focus Mode: Auto/Semi-automatic/Manual
WDR: 120 dB WDR (not supported by full frame rate)
Lens Focal Length: 4.8 mm to 120 mm 25 x optical zoom
Zoom Speed: Approx. 3.6 s (optical lens wide-tele)
Field of View: Horizontal: 55° to 2.4° (Wide-Tele); Vertical: 33° to 1.4° (Wide-Tele); Diagonal: 61.5 to 2.8° (Wide-Tele)
Working Distance: 100 mm to 1500 mm (wide-tele)
Aperture Range: F1.6 to F3.5
IR Distance: 100 m
Smart IR: Yes
PTZ Movement Range (Pan): 360° endless
Pan Speed: Configurable from 0.1°/s to 80°/s
Preset speed: 80°/s
Movement Range (Tilt): From -15° to 90°(auto-flip)
Tilt Speed: Configurable from 0.1°/s to 80°/s
Preset Speed: 80°/s
Proportional Zoom: Yes
Presets: 300
Patrol: Scan 8 patrols up to 32 presets for each patrol
Pattern Scan: 4 pattern scans record time over 10 minutes for each scan
Power-off Memory: Yes
Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning: Yes
PTZ Position Display: Yes
Preset Freezing: Yes
Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third Stream: H.265/H.264/MJPEG
H.265+: Yes
Video Bitrate: 32 Kbps to 16384 Kbps
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate: G.711alaw/G.711ulaw: 64 Kbps; G.722.1/G.726: 16 Kbps; MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
SVC: Yes
Basic Event: Motion Detection Video Tampering Detection Exception
Smart Event: Intrusion Detection Line Crossing Detection Region Entrance Detection Region Exiting Detection Object Removal Detection Unattended Baggage Detection Audio Exception Detection
Smart Record: ANR (Automatic Network Replenishment) Dual-VCA
ROI: Main stream sub-stream and third stream respectively support four fixed areas.
Max. Resolution: 2560 x 1440
Main Stream: 25fps (2560 x 1440 2048 x 1536 1920 x 1080 1280 x 960 1280 x 720); 50fps (1920 x 1080 1280 x 960 1280 x 720)
Sub-Stream: 25fps (704 x 576 640 x 480 352 x 288)
Third Stream: 25fps (1920 x 1080 1280 x 960 1280 x 720 704 x 576 640 x 480 352 x 288)
Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Built-in memory: card slot support Micro SD/SDHC/SDXC up to 256 GB; NAS (NFS SMB/
CIFS) ANR
Protocols: IPv4/IPv6 HTTP HTTPS 802.1x Qos FTP SMTP UPnP SNMP DNS DDNS NTP RTSP RTCP RTP TCP/IP UDP IGMP ICMP DHCP PPPoE Bonjour API ONVIF (Profile S Profile G Profile T) ISAPI SDK
Simultaneous Live View: Up to 20 channels
User/Host: Up to 32 users
3 levels: Administrator Operator and User
Security Measures: User authentication (ID and PW) Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client: iVMS-4200 iVMS-4500 iVMS-5200 Hik-Connect
Web Browser: IE 8 to 11 Chrome 31.0+ Firefox 30.0+
Audio Interface: 1-ch audio input and 1-ch audio output
Network Interface: 1 RJ45 10 M/100 M Ethernet PoE (802.3 at class4)
Power: 12V DC 2A and PoE (802.3 at) 42.5 to 57 VDC 0.6 A class4
Max.: 18 W including max. 7W for IR
Working Temperature: -30°C to 65°C
Working Humidity: 90%
Protection Level: IP66 Standard 4000V Lightning Protection Surge Protection and Voltage Transient
Material: ADC 12 PC+10% GF
Dimensions: 164.5 mm (diameter) x 290 mm

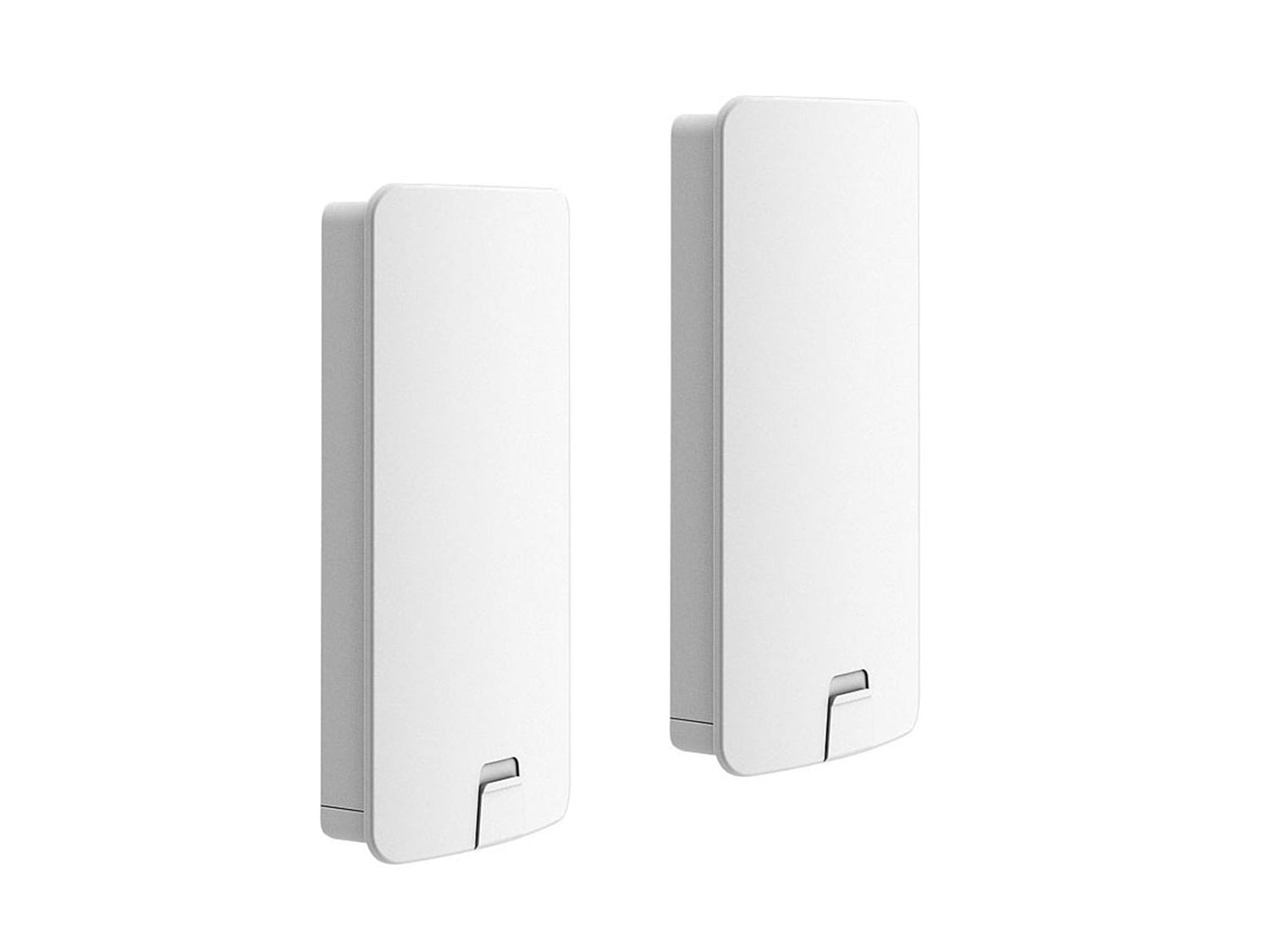

WiFi Bridge
CPU: Qualcomm 560MHz
Antenna: 2x 14dBi
Wireless Standard: IEEE802.11 a/an
Output: 200mW (23dBm)
Receiving Sensitivity: -96dBm
Frequency: 802.11a/n 5.180-5.825 GHz
Transmission Rate: 300Mbps
Ports: 10/100 WAN RJ45 10/100 LAN RJ45 PoE slide switch Reset button
Indicator: 8x LEDs
Power Supply: 802.3af/802.3at
Power Adapter: 48V PoE
Power Consumption: <8W
Dimensions: 262x80x53mm
Weight: 322g
Operational Temperature: -40 to +55c

PTZ Camera
Includes controllable Pan-Tilt-Zoom camera, letting you look around the barn and zoom in on individual animals

4MP Video
Captures footage in full 4-megapixel glory, with enough detail to identify specific animals when fully zoomed

25x Optical Zoom
The lens can move from a wide-angle view of the whole barn to a close crop on a tiny area

100m Night Vision
Powerful IR LEDs provide enough illumination to see a huge distance, even in unlit buildings

Low Light Recording
Keeps recording in colour right down to 0.003 lux, perfect for keeping track of animals in dim conditions

Weatherproof Camera
IP66 housing provides complete protection from the elements

WiFi Bridge
The camera uses high powered transmitters to connect to your home's network from up to 3km with a direct line of sight

Remote Control
Use a PC or mobile app to view and control the camera from anywhere

Smart Detection
Features the latest automation features, including line crossing, object removal and intrusion detection

Programmable Movements
Store up to 300 preset camera positions, as well as multiple patrols and patterns

Arm Bracket
Holds camera securely away from the wall, allowing 360 degrees of rotation

MicroSD Storage
Built-in MicroSD slot lets you record footage directly from the app, and can even be used as an emergency backup if you have the camera connected to a network video recorder

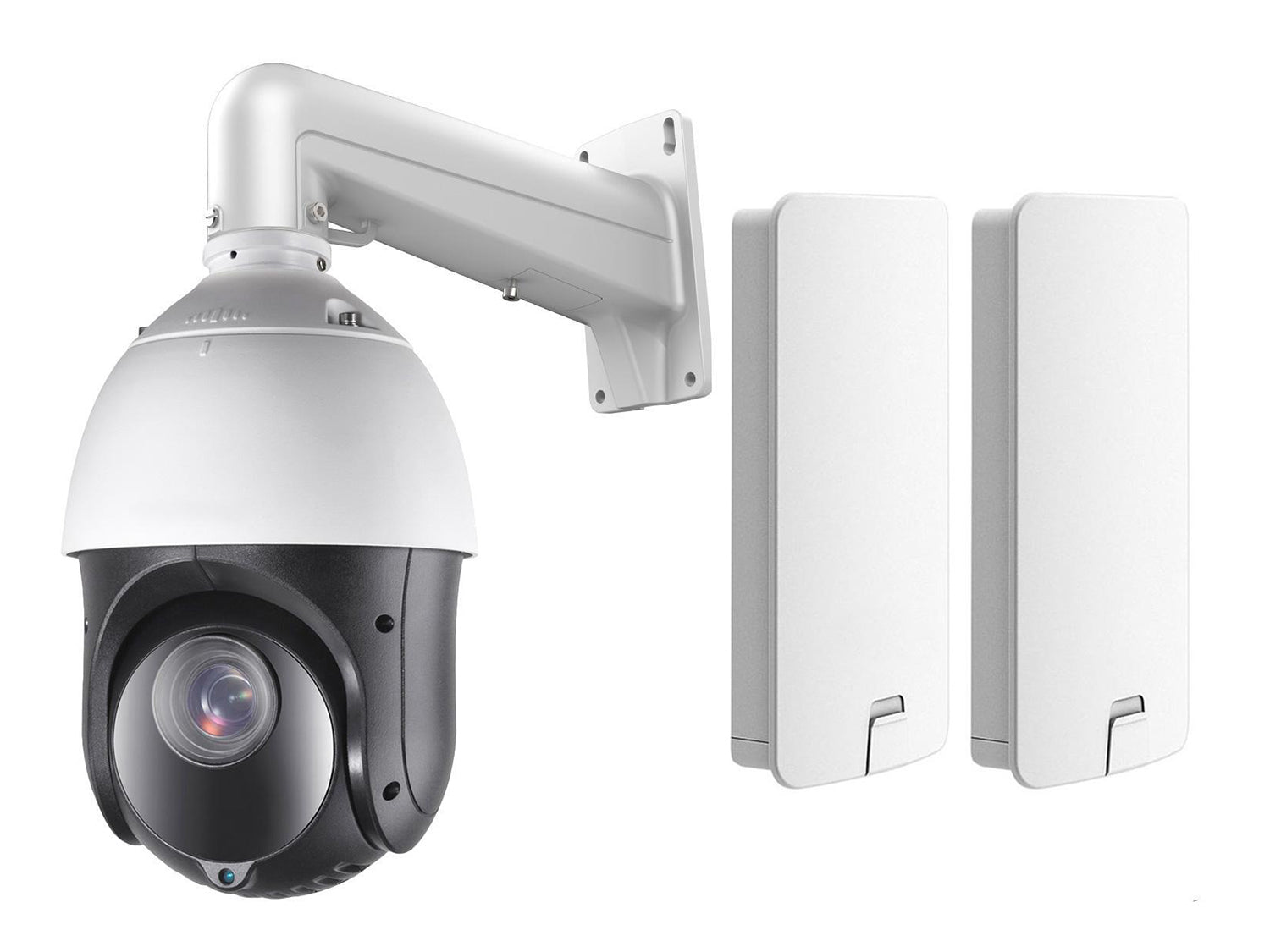

1x Dome PTZ camera
1x Metal wall bracket
1x Mains power supply for camera
2x 10m ethernet cables
2x WiFi bridges
2x Pole mounts for panels
2x PoE injectors
2x 3m Cat 5e ethernet cables
1 x 4 Port PoE network switch
