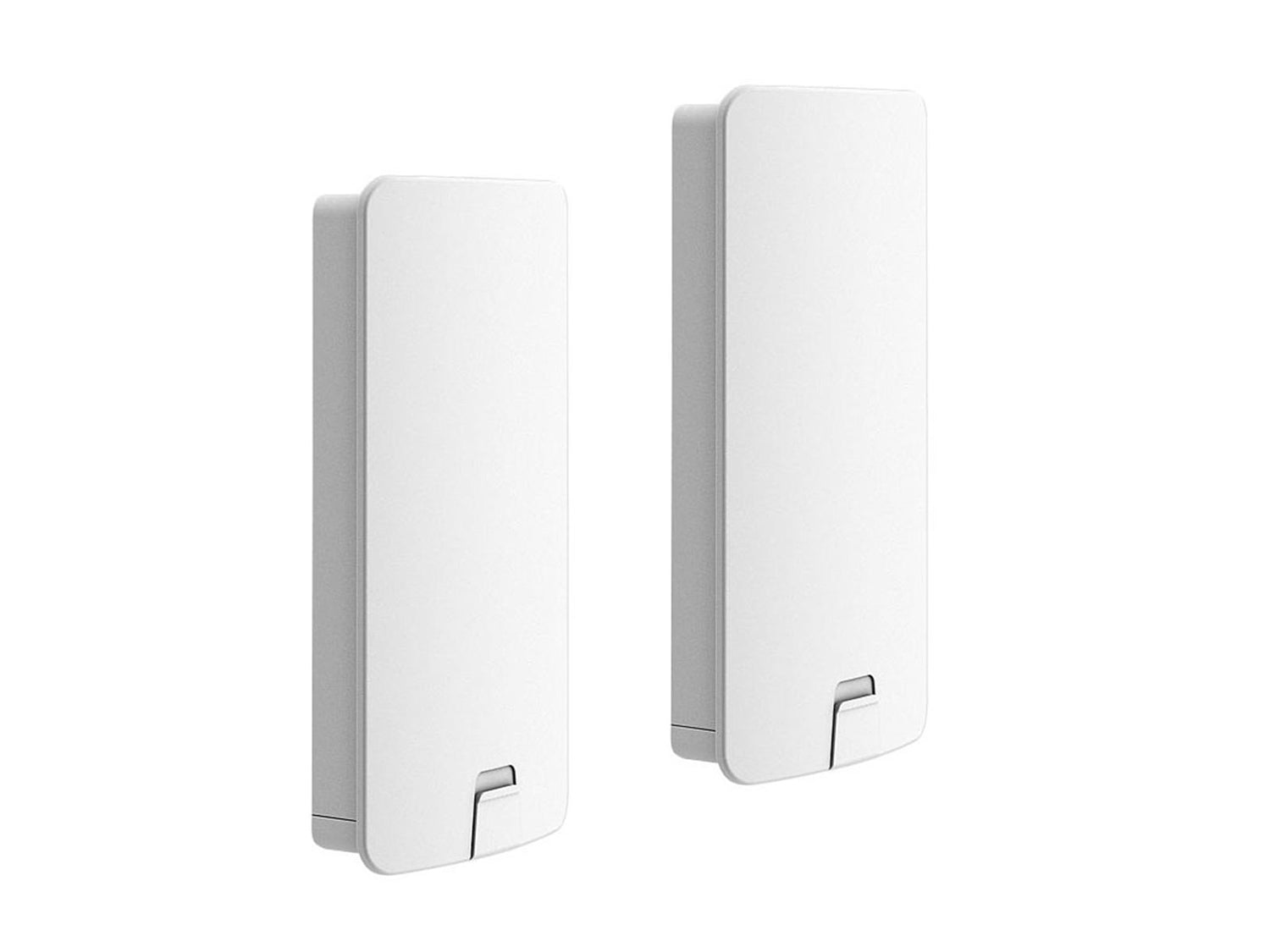

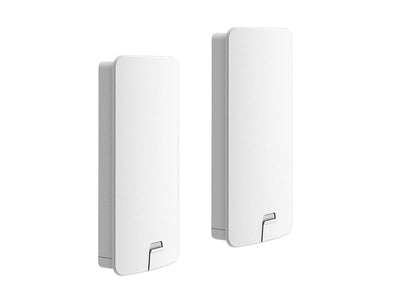

Long Range Wireless WiFi Bridge for IP Cameras

The two devices work by creating a "peer to peer" WiFi link with each other, in effect acting like an invisible cable to carry the data. There is an ethernet port on each unit, so you can easily plug an IP camera into one, and then connect the corresponding unit to your router in another building. You could even connect multiple cameras to the unit via a network switch.

CPU: Qualcomm 560MHz
Antenna: 2x 14dBi
Wireless Standard: IEEE802.11 a/an
Output: 200mW (23dBm)
Receiving Sensitivity: -96dBm
Frequency: 802.11a/n 5.180-5.825 GHz
Transmission Rate: 300Mbps
Ports: 10/100 WAN RJ45 10/100 LAN RJ45 PoE slide switch Reset button
Indicator: 8x LEDs
Power Supply: 802.3af/802.3at
Power Adapter: 48V PoE
Power Consumption: <8W
Dimensions: 262x80x53mm
Weight: 322g
Operational Temperature: -40 to +55c

WiFi Bridge
Allows you to create a link between network two devices over long ranges

Up to 3km Range
The directional high gain antennae allow the devices to link together over huge distances. Please note signal will be blocked by physical obstructions. Ensure there is a clear and direct line of sight

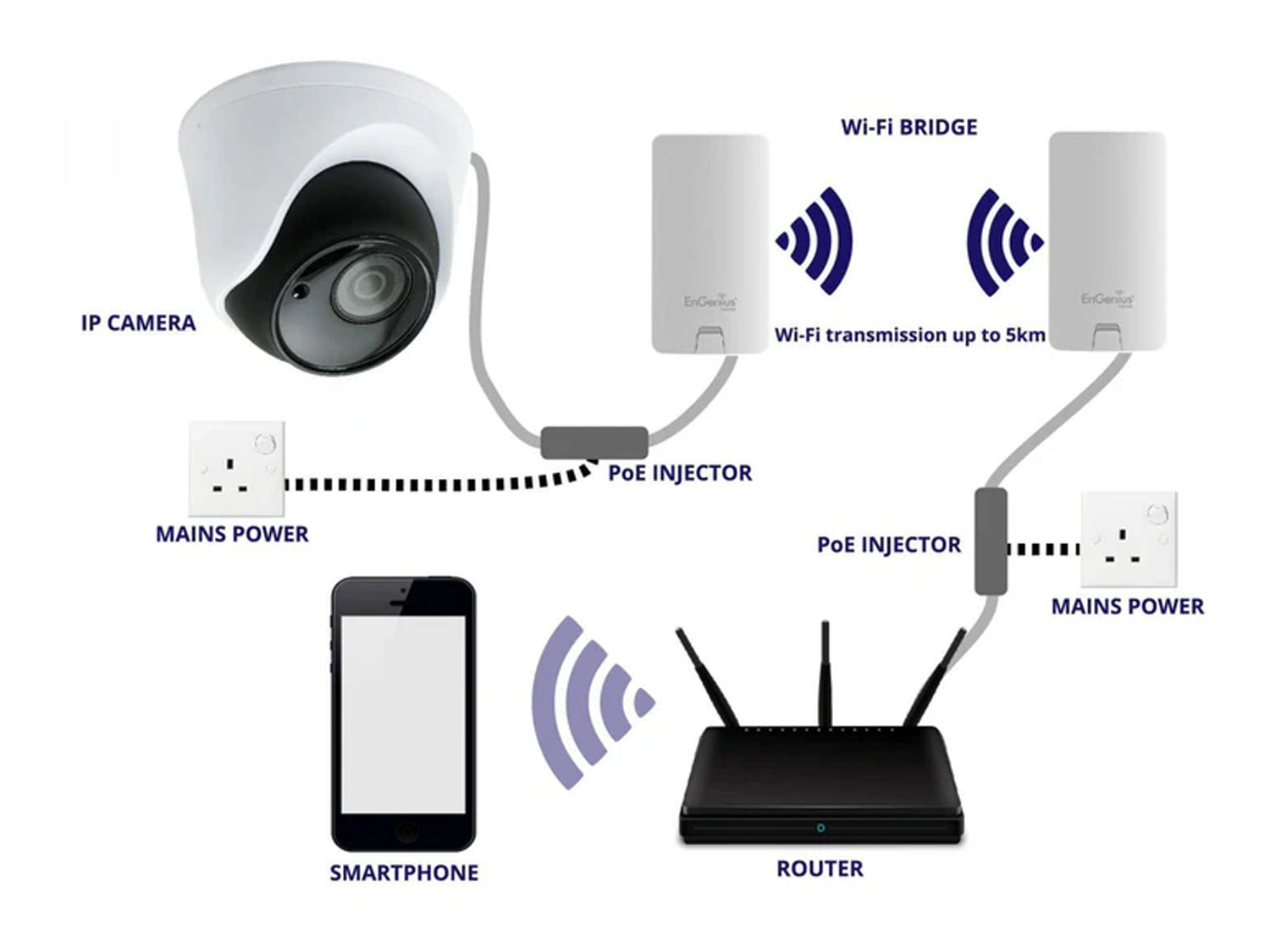

Connect IP Cameras
This kit is perfect for creating a long-range wireless security system with IP cameras. Just connect the cameras to one of the transmitters, and the second into your router

Weather Resistant
Suitable for outdoor use

Power-over-Ethernet (PoE)
Each unit uses the included PoE connector and power cable

300Mbps Throughput
Can handle large amounts of data, more than enough for most applications

2x WiFi bridges
2x Mains Power Supplies
2x PoE Injectors
2x Set of Screws
Tech support card

Click here to view out support guides on this product
