Closewatch Livestock Wireless Camera Kit for up to 4 Barns

The cameras connect to your home network using the long-range WiFi bridge panels, capable of sending the signal up to 3km in direct line of sight, essential for farms spread over large properties. Once configured to your network, the software not only lets you move the camera but also plenty of smart detection features that you can set to your specification. Settings such as line crossing and object removal detection let you easily automate monitoring.

The PTZ camera boasts all the latest features that are essential to modern CCTV. A 4-megapixel resolution (twice that of Full HD) and 25x optical zoom enable incredibly detailed video. The extensive zoom range allows you to move from a wide-angle to a view focusing on one animal's face in less than 4 seconds. At the top end of the zoom, the IR LEDs provide up to 100m night vision, automatically reducing power for closer subjects.

This pack includes 1 Year FREE of our Premium support package. We handle all the technical and network setup so that you don't have to!

PTZ CAMERA
Camera
Image Sensor: 1/2.8" progressive scan CMOS
Min. Illumination: 0 Lux with IR, colour: 0.005Lux @ (F1.6 AGC ON); B/W: 0.001Lux @ (F1.6 AGC ON)
Shutter Speed: 1/1s–1/30000s
Slow Shutter: yes
Focus: semi-auto, manual, auto
Day & Night: ICR
Day/Night Switch: day, night, auto, scheduled-switch
BLC: yes
WDR: 120 dB WDR
HLC: yes
3D DNR: yes
Defog: yes
EIS: yes
Regional Exposure: yes
Regional Focus: yes
Image Settings: brightness; contrast; sharpness; saturation
Digital Zoom: 16x
Optical Zoom: 25x
Privacy Mask: up to 24 masks; polygon region; mosaic mask; mask colour configurable
SNR:＞52dB

Lens
Focal Length: 4.8 mm to 120 mm, 25× Optical
Zoom Speed: approx. 3.6 s
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
Aperture: f1.6

Illuminator
IR Distance: 100 m

PTZ
Movement Range (Pan): 360°
Movement Range (Tilt): -15° to 90° (auto flip)
Pan Speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom: yes
Presets: 300
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans
Power-Off Memory: yes
Park Action: preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
3D Positioning: yes
PTZ Status Display: yes
Preset Freezing: yes
Scheduled Task: preset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output

Video
Max. Resolution: 2560×1440
Stream Type: main stream; sub-stream; third stream
Main Stream: 25fps (2560×1440,1920×1080,1280×960,1280×720)
Sub-Stream: 25fps (704×576, 640×480, 352×288)
Third Stream: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288)
Video Compression: H.265; H.264; MJPEG
Video Bit Rate: 32kbps to 16384kbps
H.264 Type: Baseline Profile; Main Profile; High Profile; baseline profile; main profile; high profile
H.265 Type: Main Profile; main profile
H.264+: yes
H.265+: yes
SVC: yes
ROI: dynamic face tracking; mainstream, sub-stream and third stream respectively support eight fixed areas; fixed region

Audio
Audio Compression: G.711alaw; G.711ulaw; G.722.1; G.726; MP2L2; PCM
Audio Bit Rate: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps; MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
Audio Sampling Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering: yes

Smart Features
Face Capture: yes
Basic Event: audio exception;motion detection;video tampering alarm;exception
Smart Event: intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
Smart Record: ANR; Dual-VCA
Alarm Linkage: preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP

Network
Network Storage: NAS (NFS, SMB/ CIFS); ANR
Protocols: IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
API: ISAPI; Hikvision SDK; ONVIF (Profile S, Profile G, Profile T); ISUP; Hik-Connect
Simultaneous Live View: 20
User/Host: 32
Smooth Streaming: yes
Security Measures: authenticated username and password; MAC address binding; HTTPS encryption;802.1X authenticated access; IP address filter
Client: iVMS-4200; Hik-Connect
Web Browser: IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

Interface
Communication Interface: 1× RJ45 10 M/100 M Ethernet interface; PoE (802.3at); RJ45, self-adaptive 10M/100M Ethernet port
On-Board Storage: support microSD/microSDHC/microSDXC cards;up to 256 GB
Alarm Input: 1 alarm input
Alarm Output: 1 alarm output
Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output: 1 audio output, line level, impedance: 600 Ω

General
Power: 12V DC, PoE(802.3at)
Power Consumption And Current: Max. 24 W, including max. 9 W for supplement light
Operating humidity: <90% RH
Operating temperature: -30℃ to 65℃
Reset: yes
Material: ADC 12, PC, PC+10% GF
Dimensions: Φ 164.5 mm × 290 mm
Weight: Approx. 2 kg
Protection: IP66;4000V Lightning Protection, Surge Protection and Voltage Transient Protection

PTZ Camera
Central to this kit is the powerful Pan-Tilt-Zoom cameras allowing you look around the barn and zoom in on individual animals without having to be physically in the room!

WiFi Bridge
This kit uses high-powered wireless transmitters to send the camera stream back to your home's network via the air.

4MP Video
Captures video in 2560×1440 resolution, twice the detail of Full HD to give you plenty of detail to get a very clear view of animals even when zoomed out.

25x Optical Zoom
The PTZ camera can move from a wide-angle view of the whole barn to a close crop on a tiny area with a zoom time of just 3.6 seconds.

100m Night Vision
Powerful IR LEDs provide enough illumination to see a huge distance, even in unlit buildings.

Low Light Recording
Keeps recording in colour right down to 0.005 lux, perfect for keeping track of animals in dim conditions.

Remote Control
Use PC or mobile app to view and control the camera from anywhere.

Smart Detection
Includes the latest automation features, including line crossing, object removal and intrusion detection.

Programmable Movements
Store up to 300 preset camera positions, as well as multiple patrols and patterns.

Arm Bracket
Holds camera securely away from the wall, allowing 360 degrees of rotation.

MicroSD Storage
Built-in MicroSD slot lets you record footage directly from the app, and can even be used as an emergency backup if you have the camera connected to a network video recorder.

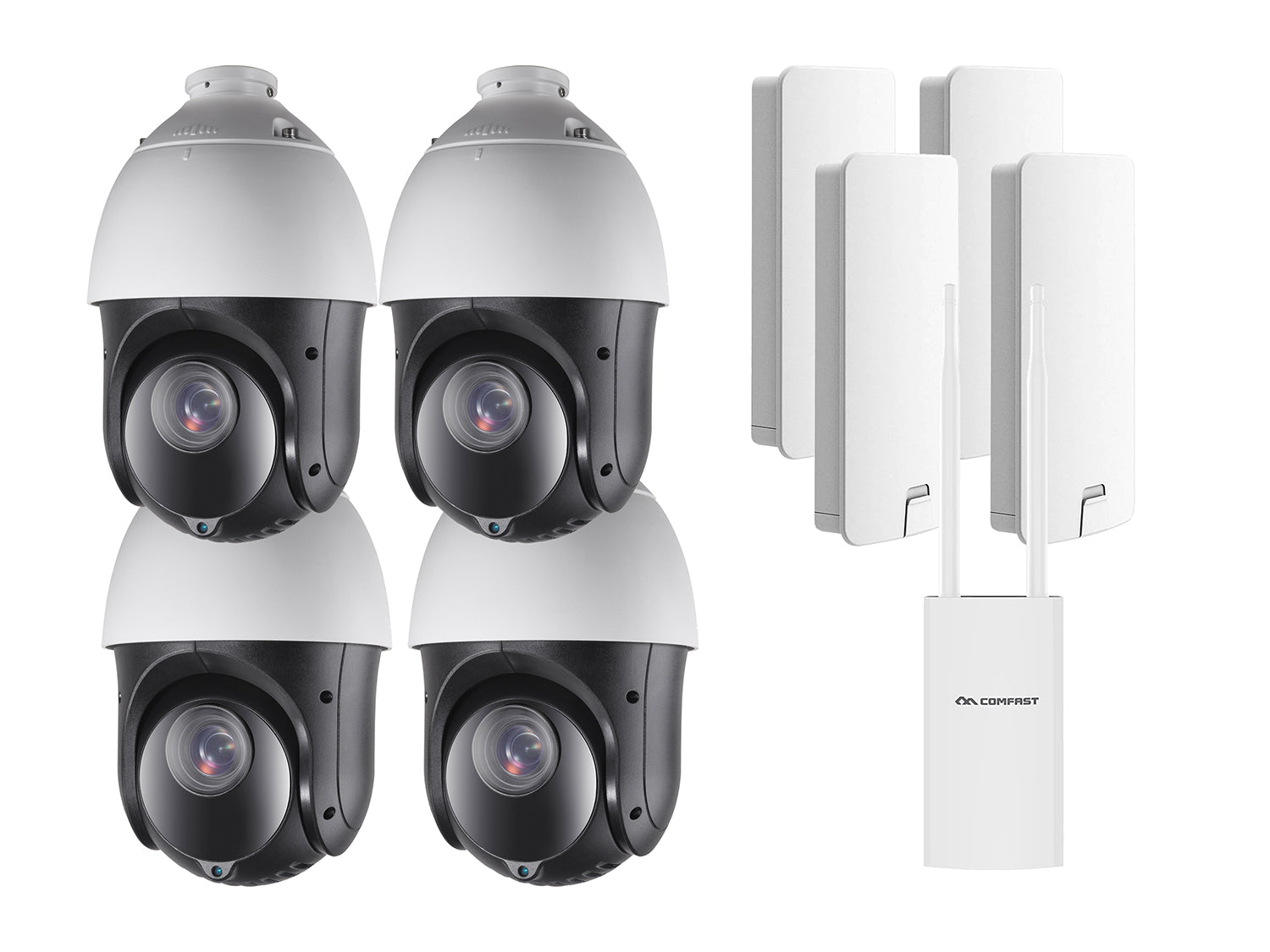

4× 4MP PTZ camera with 25× optical zoom
4× Mounting bracket for camera
5× 3m Cat 5e network cable
4× Pre-cut 10m Cat 5e network cable
4× Wireless panel
1× Omnidirectional wireless bridge
5× Power supply for wireless panel
FREE 1 Year Premium Support
