HD Barn 4 Camera System with Long Range Wireless
For over 12 years our farming and foaling camera kits have been helping farmers take the stress out of monitoring their animals by providing them with an easy way to keep watch over all their livestock from one central building. This HD barn camera system is the next generation in our range, providing farmers with more video quality, wireless range and convenience than ever possible before.
Learn more
As CCTV specialists for over 15 years we've built and designed CCTV systems all over the world! Read more about this product here and if you have any questions give us a call or email us on hello@closewatch.uk
Description
As opposed to traditional analogue CCTV cameras, this system uses advanced IP security cameras. These record high-quality digital video and then send it as data down a network cable. As a result, the kit records in 1920x1080p HD, capturing images of your animals with more detail and definition.
This also means that, instead of using standard wireless transmitters, the system can use a pair of WiFi transmitters to send your video across huge ranges- up to 3km providing there is a direct line of sight between the devices. This lets you keep a constant watch over animals all the way on the other side of your property!
As well as 4 weatherproof cameras with 30m night vision, the system also includes a 4-channel network video recorder (NVR). The cameras are wired into this central recorder in your barn or lambing shed, and then this is connected to the transmitter in order to send video from all 4 cameras. The NVR boasts a full set of adjustable features, including motion detection and scheduled recording, allowing you to keep an archive of footage on your chosen hard drive. The signal from the transmitter can then connect directly to your internet router, allowing you to view your animals on a PC, smartphone or tablet from anywhere with an internet connection!
Tech Specs

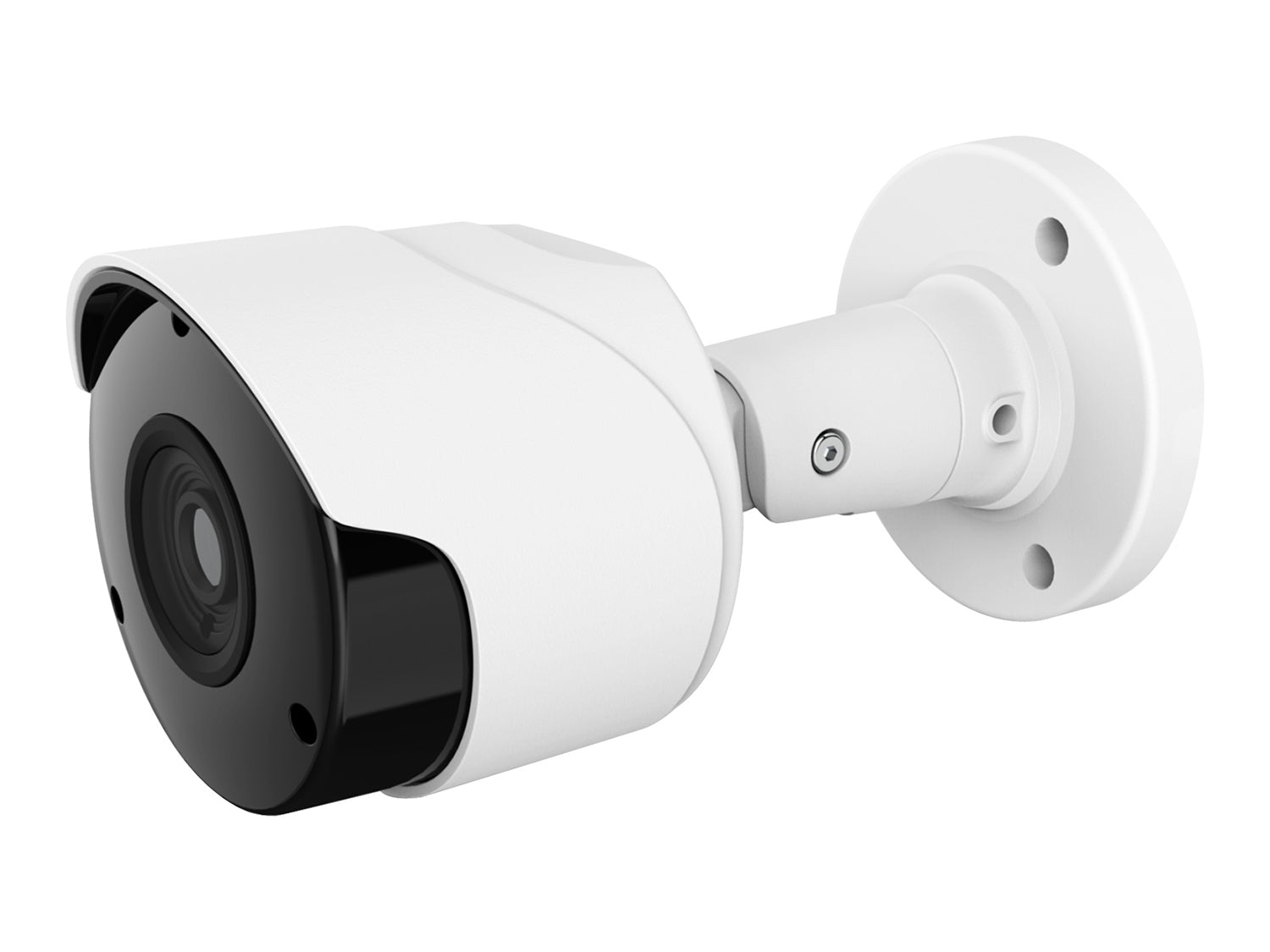

Cameras
Resolution: 2MP 1920(H)x1080(V)
Image Sensor: 1/2.7 Progressive CMOS
Min. Illumination: colour 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
Shutter: 1/5 ~ 1/20000s
Slow Shutter: Support
Lens: 3.6 mm H.FOV: 87°
Day & Night: IR cut filter with auto switch（Day/Night/Auto/Schedule
Digital Noise Reduction: 3D DNR
WDR: Digital WDR
Video Compression: H.265/H.264
Video Bitrate: 256Kbps ~ 8Mbps
Stream: Dual
Frame Rate: Mainstream (1 ~ 25 fps)
1080P(1920x1080) 960P(1280x960)
720P(1280x720) - Substream: VGA(640x480)QVGA(320x240)
Image Settings: Flip mode Saturation Brightness Contrast Hue Sharpness adjustable
BLC: Support
Privacy Mask: Support
Video Analytics: N/A
Protocols: TCP/IPHTTPDHCPDNSDDNSRTP/RTSPPPPoE
SMTPNTPUPnPSNMPHTTPSFTP
System Compatibility: ONVIF( Ver 2.6 Profile S Profile G)
Interface: RJ45 10M / 100M Ethernet interface x1
Led : 18pcs(SMD)
IR Range: Up to 30m
SD Storage: no
Alarm Trigger: no
Built-in Mic: no
Audio: no
Video Output: no
Reset Button: no
PoE: yes
Weatherproof: IP66
Power Supply: DC 12V/POE
Consumption: 7W
Dimension: 69 x 138mm
Weight: appr. 320g
Storage Temperature: -30–+60°C
Operating Temperature: -30–+55°C
WiFi Transmitters
Interface: 2x RJ45 Connectors 1x Reset Button
Power Requirements: Active Internet Proprietary PoE Power Adapter
Frequency Band: 802.11 a/n
Data Rate: 300Mbps
Antenna: 10dBi
Operation Mode: Access Point Client Bridge Client Router WDS
Operational Temperature: -20°c to +70°c
Humidity: 0-90%
Dimensions: 186x100x29mm
Weight: 300g
Features
HD Wireless Lambing Camera System
This system lets you monitor your animals from a central building around the clock, helping save you stress.
4 IP Cameras
Uses digital IP cameras, providing much-improved image quality over traditional systems, along with more versatile viewing options.
Mobile Access
The kit connects directly to your internet router, allowing you to easily check in on your animals using a PC, smartphone, or tablet.
1080p HD
Full HD video quality allowing you to watch your animals in far more detail than before.
30m Night Vision
Essential for use in unlit barns or sheds.
IP67 Cameras
Weatherproof housings allow the camera to be used in exposed outdoor locations.

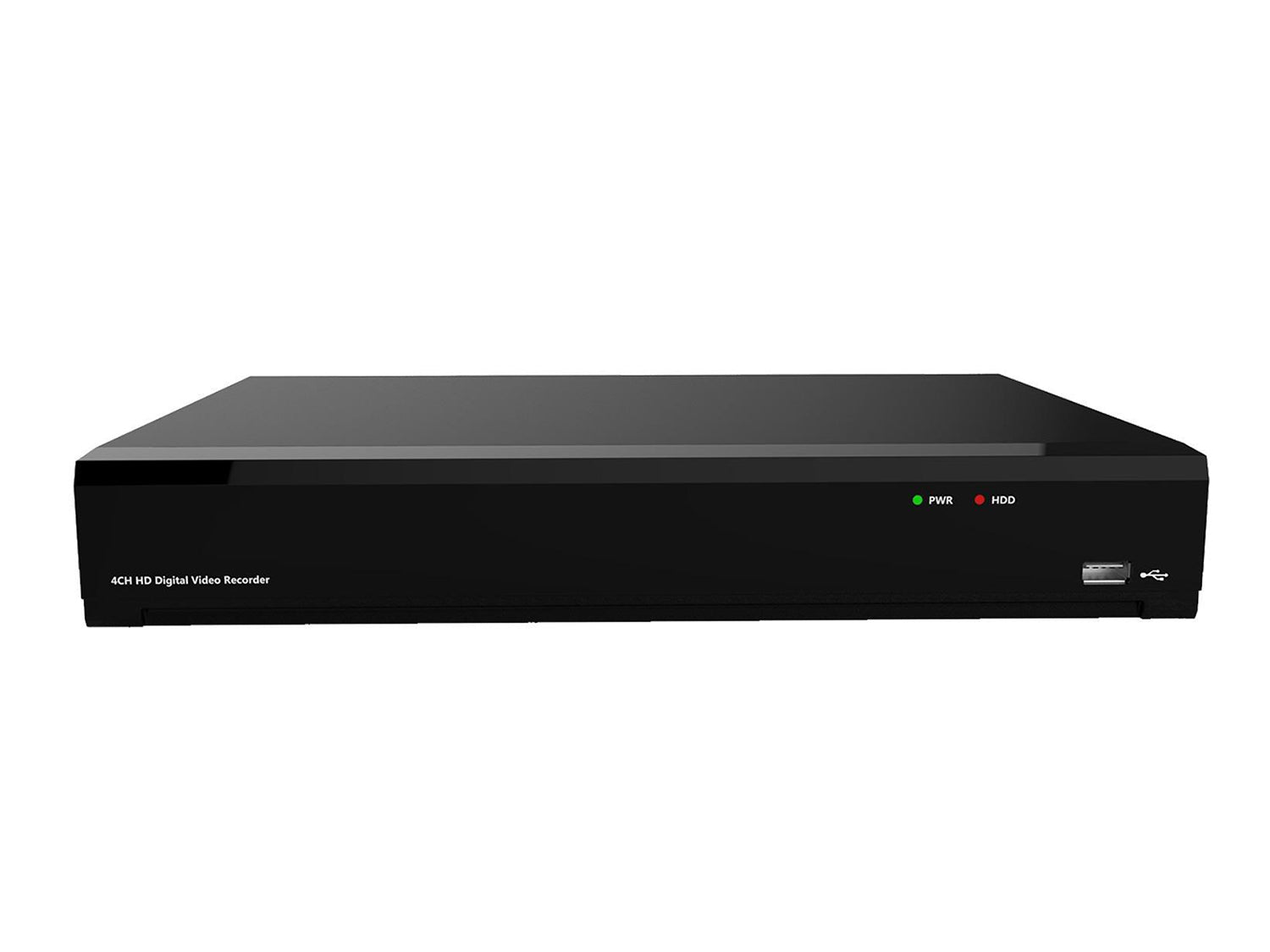

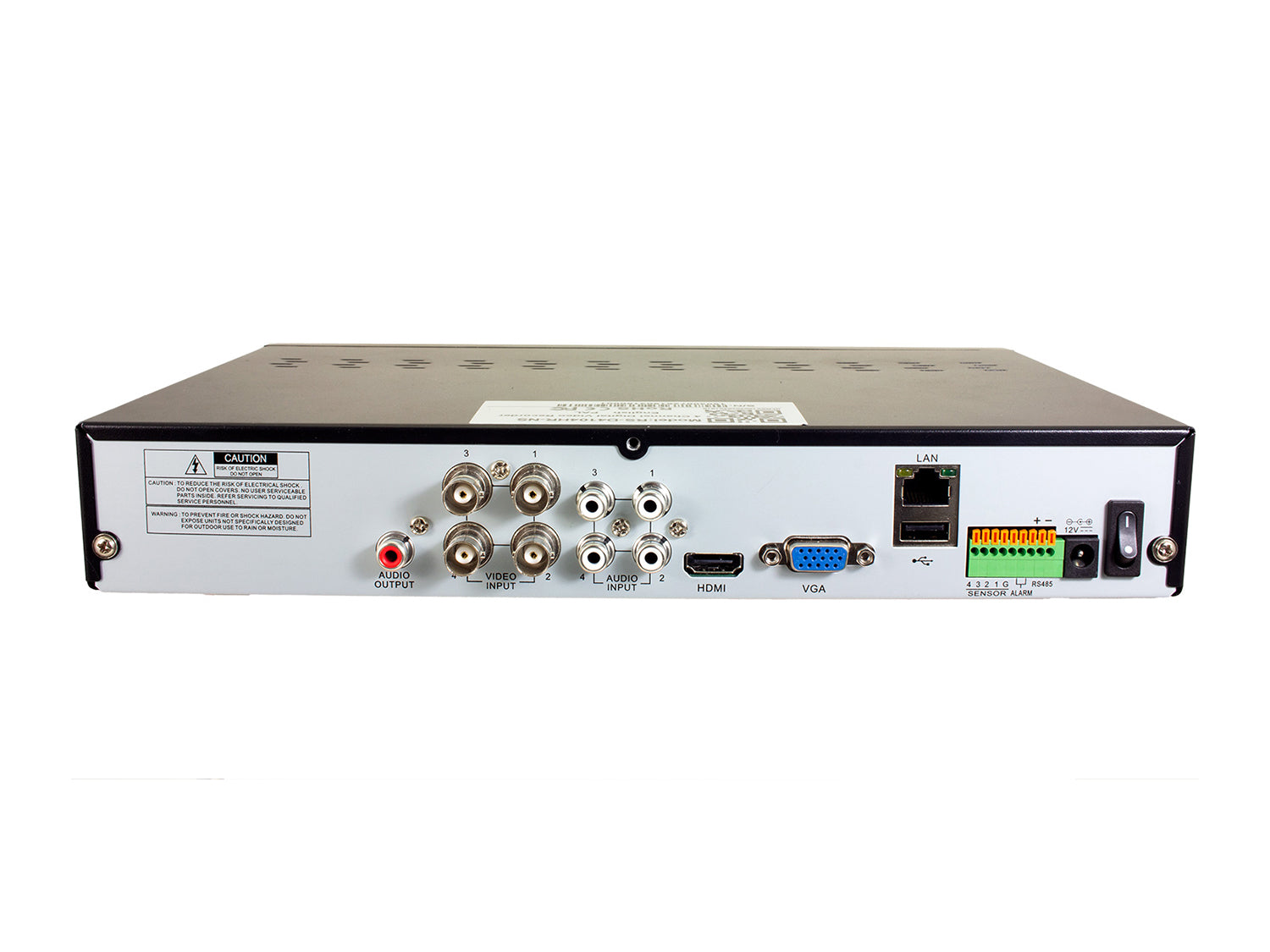

4 Channel NVR
Includes recorder with your choice of hard drive, letting you record days worth of HD footage as well as watch live.
Advanced Recording Modes
The recorder features motion detection and scheduled recording, all with in-depth adjustments.
HDMI output
NVR features HDMI, allowing you to easily view on a TV in the same building as your cameras.
10m Cables
Allow flexibility in choosing a location for recorder and transmitters.

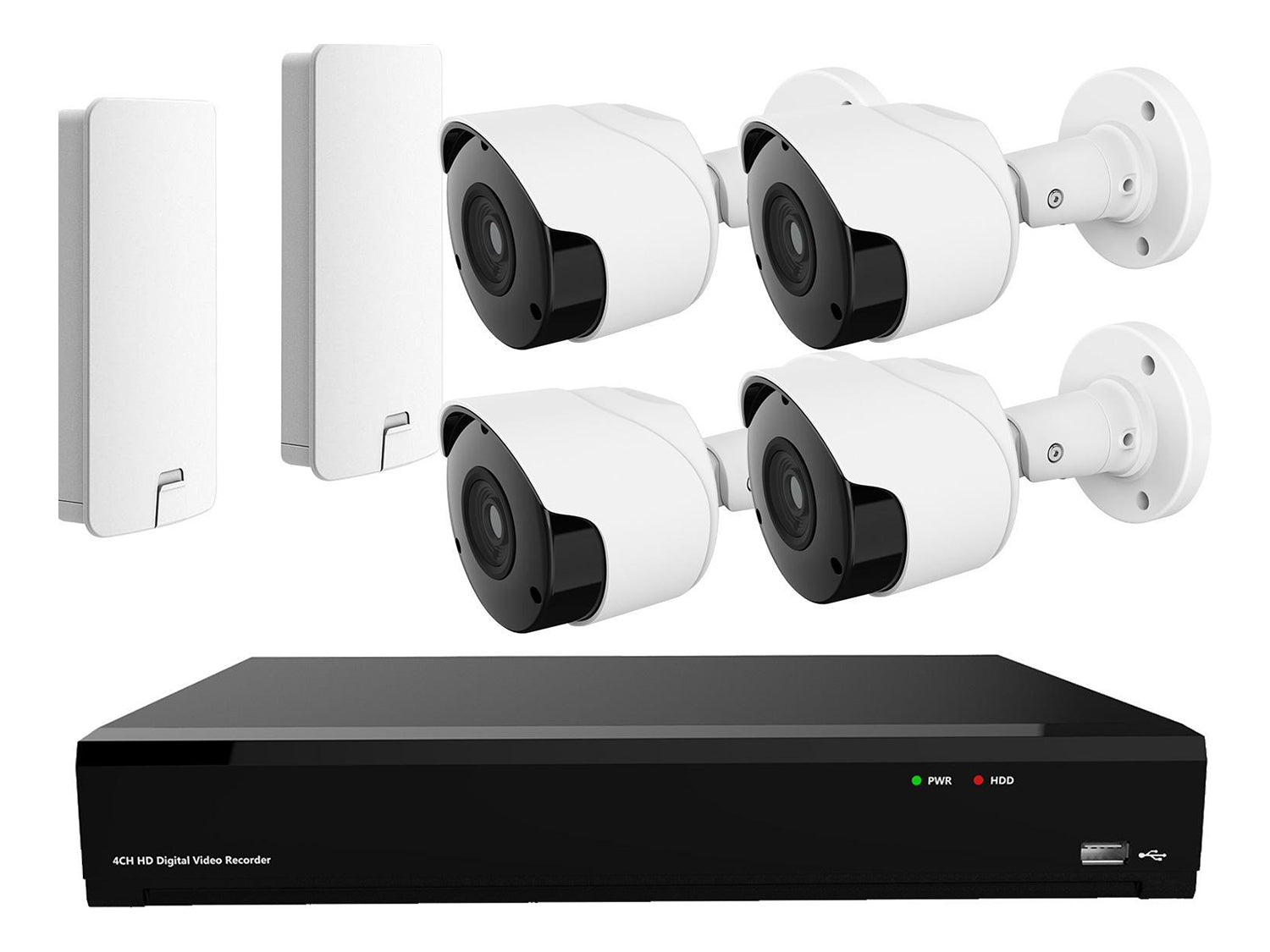

What's Included
4x 1080p HD IP security cameras
6x 10-metre outdoor black network cables
1x 4-port PoE-enabled Network Switch
2x 5GHz Wireless Bridge Panels
1x 3-metre patch network cable for panels
1x Mains power supplies for panels

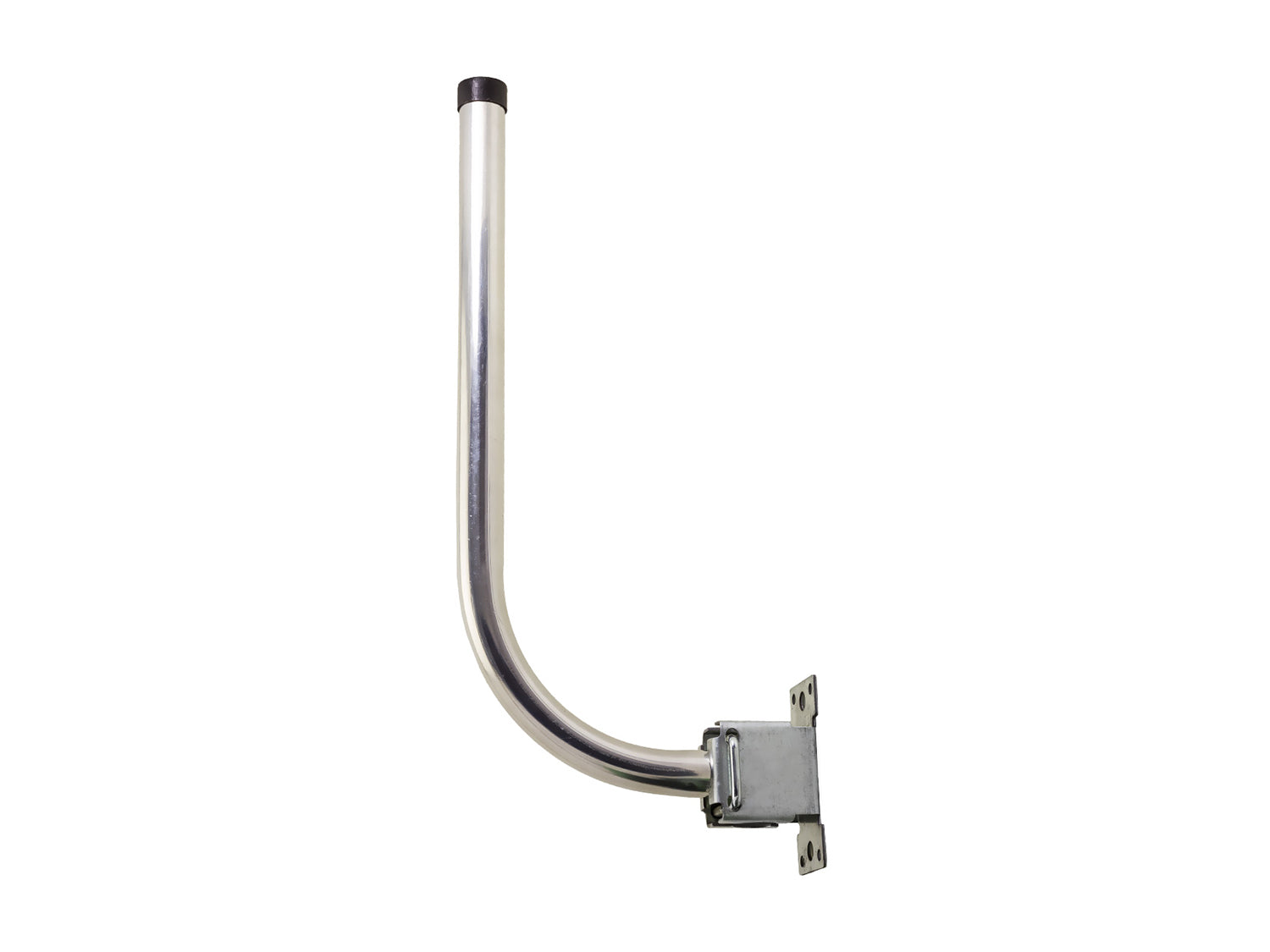

2x J-pole mount brackets for panels
1x 4 Channel Network-Connected NVR
1x Mains power supply for NVR
USB mouse for NVR
Manuals & Schematics
FREE 1 Year Premium Support
