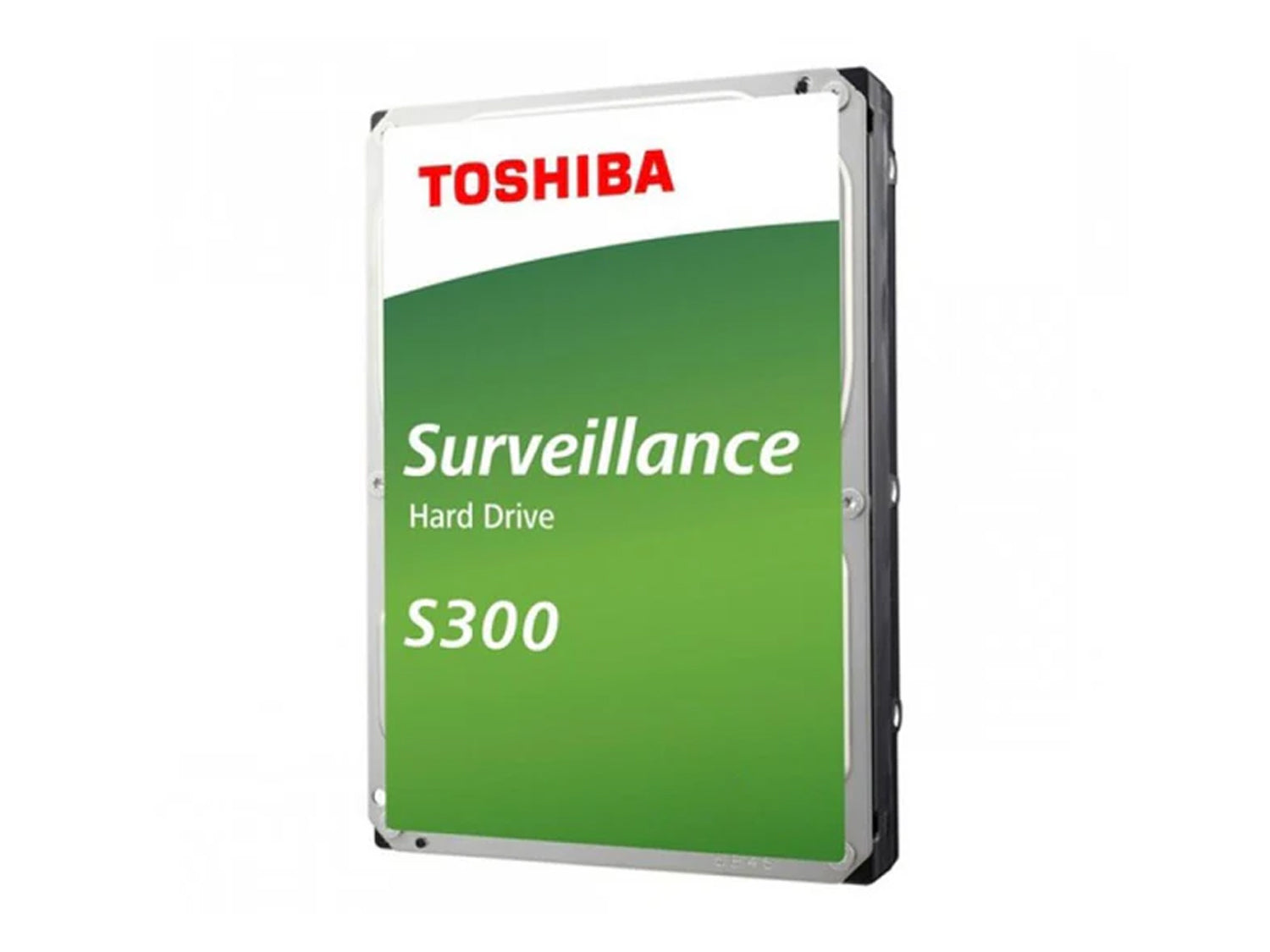

Toshiba Surveillance Grade HDD Hard Drive

Basic Specifications
Form factor: 3.5-inch
Interface: 6.0 Gbit/s
Number of cameras supported: 64 (6 TB -10 TB) 32 (4 TB 5 TB)
Drive bays supported: 8+ (6 TB -10 TB) 1-8 (4 TB 5 TB)
Rotational Vibration (RV) Sensors: Yes
Advanced Format (AF): Yes
RoHS compatible: Yes
Halogen Free: Yes
Shock Sensor: Yes

Performance
Rotational speed: 7200 rpm
Max. data transfer speed (sustained): 248 MB/s Typ. (10 TB) 241 MB/s Typ. (6 TB 8 TB) 157 MB/s Typ. (4 TB 5 TB)
Buffer size: 256 MB (6 TB - 10 TB) 128 MB ( 4 TB 5 TB)
Average latency: 417 ms (6 TB - 10 TB) 556 ms (4 TB 5 TB)
Native Command Queuing (NCQ): supported

Reliability
Workloads: 180 TB/year (6 TB - 10 TB) 110 TB/year (4 TB 5 TB) MTTF 1.000.000 hours
Unrecoverable error rate: 1 per 10E14 bits read
24/7 operation: Yes
Load/Unload Cycle: 600.000
Limited warranty: 3 years

Power Management
Supply voltage: 5V DC +6/-5%; 12V DC ±10% (6TB - 10TB); 5V DC ±5%; 12V DC ±10% (4TB 5TB)
Consumption (operating): 9.48 W typ. (10 TB) 8.61 W typ. (8 TB) 7.88 W typ. (6 TB) 7.5 W typ. (4 TB 5 TB)
Consumption - Active Idle: 7.15 W typ. (10 TB) 6.33 W typ. (8 TB) 559 W typ. (6 TB) 4.00 W typ. (4 TB 5 TB)

Environmental
Temperature (operating / non-operating): 0 - 70°C / -40 - 70°C
Vibration (operating): 0.75 G (5 to 300 Hz) 0.25 G (300 to 500 Hz)
Vibration (non-operating): 3.0 G (5 to 500Hz) (6 TB - 10 TB); 5 G (5 to 500Hz) or less (4 TB 5 TB)
Shock (operating): 70 G / 2 ms duration
Shock (non-operating): 250 G / 2 ms duration (6 TB - 10 TB) 300 G / 2 ms duration (4 TB 5 TB)
Acoustics (idle mode): 34 dB typ. (6 TB - 10 TB) 26 dB typ. (4 TB 5 TB)

Physical
Dimensions: 147 (L) x 101.85 (W) x 26.1 (H) mm
Weight: (approx.) 770 g max. (6 TB - 10 TB) 720 g max. (4 TB 5 TB)

1x 3.5-inch internal HDD - S300 Video Streaming Hard Drive
