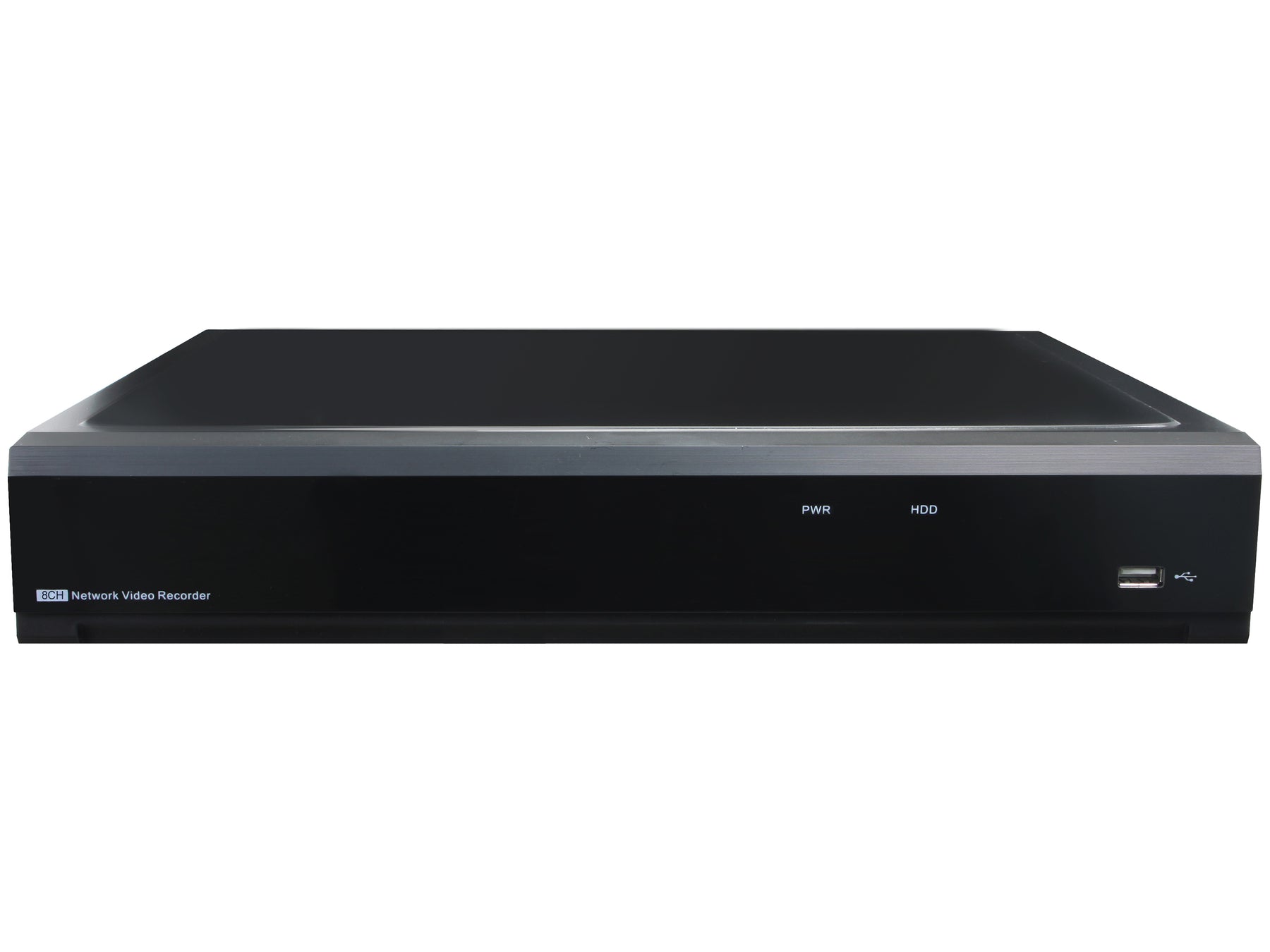

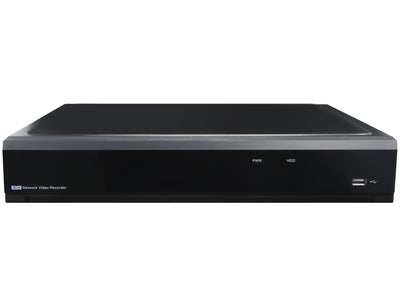

Gamut 8-Channel HD IP CCTV NVR

Gamut are manufacturers of professional-grade security and CCTV solutions, all built to withstand the most demanding CCTV trade and commercial applications.

Since being founded in Bristol in 2009, Gamut cameras and recorders are used by a wide base of tradesmen and installers, servicing the home, business and local government markets. To ensure reliable build and picture quality, all products are put through a rigorous testing process both in-house and in the field before they're allowed to bear the Gamut badge.

Part of the range is this neat 8-channel NVR, which lets you connect up to 8 IP cameras to the recorder.

This recorder supports up to 4K (8MP) and HD resolutions to ensure that you view and record the most detailed footage. To get the sharpest detail, you can live-view one 4K (8MP) camera at a time in full resolution.

Need more storage? No problem. This NVR supports an HDD up to 8TB in capacity, so you won't run out of recording storage soon! Just pick an optional hard drive from the drop-down menu, suited to your needs.

And for even more storage space, you can benefit from the latest H.264 compression encoding technology. Thanks to this, you can store more and better quality video in less storage space.

You can view the recorder's output on any monitor with HDMI in up to 4K.

What's more, you can access the recorder online! Simply connect it to your network so you can view your footage from your PC, smartphone or tablet. Easy as pie!

Recording Bandwidth: Max 128Mbps
Recording Resolution: 8MP, 5MP, 3MP, 2MP, 1.3MP, 1.0MP
Display Split: 1/4/6/8/9
Live/Playback performance: 4K: 2ch realtime 4MP: 4ch realtime; 2MP: 8ch realtime"

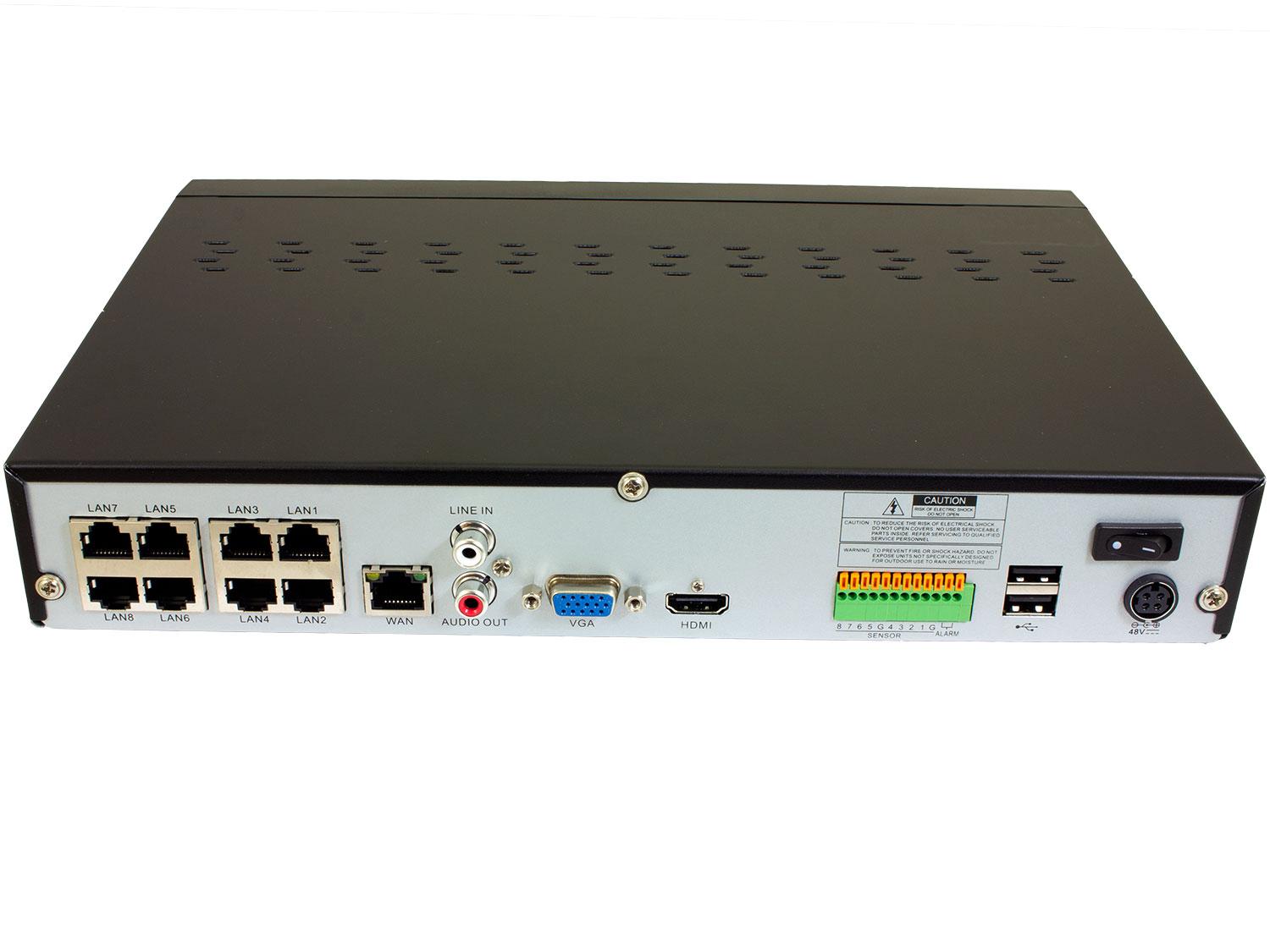

Output Interface: 1x HDMI (up to 4K), 1x VGA
Display Resolution: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160
Alarm Input/out: 8 in / 1 out
Ethernet: RJ-45 port (100/1000M）
Smartphone compatibility: iOS, Android
Internal HDD: 1x SATA HDD, up to 6TB
RS485: No
e-Sata: Yes
Line In: No
USB: 1x USB 3 for backup/upgrade, 2x USB 2 for mouse
AI-Registered quantity: 10000
AI-Maximum captured quantity: 200,000 faces
ONVIF: Yes
Power consumption (excluding hard disk): 9W
Power Supply: DC48V/1.5A; PoE Switch: 48V
Dimensions (W×D×H): 300x227x53 mm

8-Channel CCTV Recorder
Connect up to 8 IP cameras to the recorder to view and record full quality footage

Up to 4K (8MP) Recording Resolution
The recorder supports up to 4K (8MP) and HD resolutions to ensure that you capture the most detailed footage

Live-View 4K Camera
You can live-view one 4K (8MP) camera at a time in full resolution to get the sharpest detail

Add up to 8TB of Storage
Supports an HDD up to 8TB in capacity for plenty of recording storage.

H.264 Compression
This latest encoding technology allows for more video to be stored in less storage space

Online Access
You can connect the recorder to your network for remote viewing on your PC, smartphone or tablet

HDMI Output
View the recorder's output on any monitor with HDMI in up to 4K

1x Gamut 8-Channel HD IP CCTV NVR

Click here to view out support guides on this product
