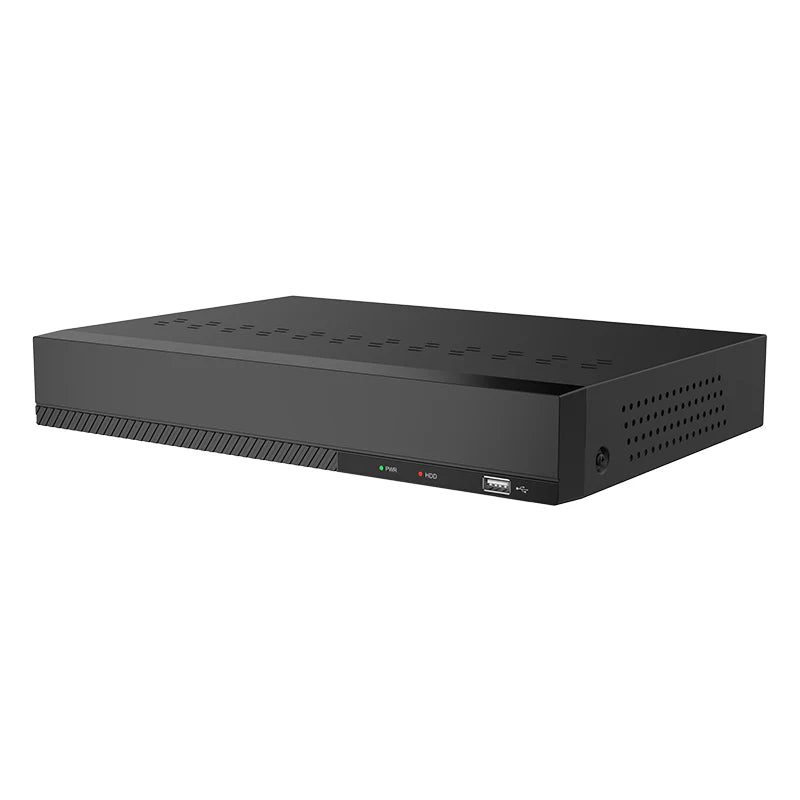

Gamut 8-Channel 4-in-1 HD CCTV DVR with AoC

Part of our professional Gamut CCTV range is this dapper DVR, which lets you connect up to 8 coax cameras to the recorder. With a bit of extra configuration, you can also add up to 2 IP cameras via your network. This recorder supports recording of 1080p HD resolution of up to 8 cameras to ensure that you view and record the most detailed footage.

Thanks to its 4-in-1 compatibility you will be able to connect to all major analogue camera video formats, including CVBS, TVI, AHD and CVI. Despite this recorder's high flexibility, it is still super easy to set up! All you need to do is hook up the camera to the recording with the BNC connection. This recorder also supports AoC (Audio over Coax) for easy setup of cameras with microphones.

Need more storage? No problem. This DVR supports an HDD up to 8TB in capacity, so you won't run out of recording storage soon! Just pick an optional hard drive from the drop-down menu, suited to your needs. And for even more storage space, you can benefit from the latest H.264 compression encoding technology. Thanks to this, you can store more and better quality video in less storage space.

What's more, you can access the recorder online! Simply connect it to your network so you can view your footage from your PC, smartphone or tablet. Easy as pie!

Recording Bandwidth
Input: 8Mbps~36Mbps
Total decoding performance: 1080p @ 60fps
Output: 90Mbps
Analogue Camera input: 8 channels
IP Camera Input: 2 channels

Recording and Playback
Audio compression: G.711a
Video compression: H.264
Display resolution (analogue): 5MP-Lite@20fps, 4MP-Lite@30fps, 1080p/720p/960H@30fps
Display resolution (IP): 5MP/4MP/1080p/720p
Single IP channel: up to 2MP @ 30 fps
Frame rate per channel (analogue): 5MP-Lite@15fps, 4MP-Lite@18fps, 1080p@15fps, 720p@25fps
Frame rate per channel (IP): 25fps
Sub-stream: 704×576 @ 10fps
Event: Motion detection (Sensitivity Level 1–8), video loss
Notifications: Beep, Email, Push notification to app
Playback function: Fast forward/fast backward (2×, 4×, 8×, 6×)
Slow forward: (1/2×, 1/4×, 1/8×,1/16×)
Playback: 5MP-lite@45fps (max 3ch) 4MP-lite@54fps (max 3ch), 1080p@60fps (max 4ch), 720p@120fps (max 4ch)
AoC - Audio over Coax support

UI/Monitoring
Local: UI 5.0, web browser
App: RXCamView
Push Notification: TUTK/RS
BNC Output: 1× BNC (704×576)
VGA Output: 1× VGA (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080）
HDMI Output: 1× HDMI（1024×768, 720p, 1280×1024, 1440×900, 1080p, 2K, 4K）
Ethernet: 1× RJ45 10/100 Base-T
USB: 1× front, 1× rear
Audio: 1× in, 1× out
Alarm: 4× in, 1× out
eSATA: 1× optional, not supported by default
HDD: 1× SATA HDD, up to 8TB default


General
Dimensions (W×D×H): 300×227×53mm
Input Voltage/Current: 1× HDD: DC 12V 2A; 2× HDD: DC 12V 5A
Operating Temperature: 0°C~+40°C
Operating Humidity: 90% RH

8-Channel CCTV Recorder
Connect up to 8 coax cameras to the recorder to view and record full quality footage

1080p HD Recording Resolution
The recorder supports 1080p Full HD to ensure that you capture the most detailed footage

Connect up to 2 IP Cameras
You can also add up to two IP cameras to the recorder via your network (further configuration required)

4-in-1 Compatibility
Supports all major analogue camera video formats including CVBS, TVI, AHD and CVI

Plug-and-Play
Simply hook up the camera to the recorder using the BNC connection

Add up to 8TB of Storage
Supports an HDD up to 8TB in capacity for plenty of recording storage.

H.264 Compression
This latest encoding technology allows for more video to be stored in less storage space

Online Access
You can connect the recorder to your network for remote viewing on your PC, smartphone or tablet

HDMI Output
View the recorder's output on any monitor with HDMI in up to 4K

Audio over coax compatible (AoC)
Use a single coax cable for video and audio with compatible cameras with a microphone

1x Gamut 8-Channel 4-in-1 HD CCTV DVR
