Gamut 8-Channel 4-in-1 HD CCTV DVR

Part of our professional Gamut CCTV range is this dapper DVR, which lets you connect up to 8 coax CCTV cameras to the recorder. With a bit of extra configuration, you can also add up to 4 IP cameras via your network. This recorder supports Full 1080p HD to ensure that you view and record the most detailed footage.

Thanks to its 4-in-1 compatibility you will be able to connect to all major analogue camera video formats, including CVBS, TVI, AHD and CVI. Despite this recorder's high flexibility, it is still super easy to set up! All you need to do is hook up the camera to the recording with the BNC connection.

Need more storage? No problem. This DVR supports an HDD up to 6TB in capacity, so you won't run out of recording storage soon! Just pick an optional hard drive from the drop-down menu, suited to your needs. And for even more storage space, you can benefit from the latest H.264 compression encoding technology. Thanks to this, you can store more and better quality video in less storage space.

What's more, you can access the recorder online! Simply connect it to your network so you can view your footage from your PC, smartphone or tablet. Easy as pie!

Design
Recording bandwidth: 8Mbps~24Mbps
Total decoding performance: 1080p @ 60fps
Bandwidth out: 64Mbps
Video inputs: 8 channels
IP video input: 4 ch

Performance
Installation wizard: Yes
Audio compression: G.711a
Video compression: H.264
Display resolution (analogue): 5MP-lite @ 20fps, 4MP-lite @ 30fps, 1080p/720p/960H @ 30fps
Display resolution (IP): 4MP/1080p/720p
Speed per channel (analogue): 5MP-lite @ 15fps. 4MP-lite @ 18fps, 1080p @ 15fps, 720p @ 25fps
Speed per channel (IP): 25fps
Sub-stream: 720×576 @ 10fps
Event: Motion detection, video loss; beep, email, push notification
Playback function: Fast forward/backward, slow forward
Playback: 5MP-lite 90fps (max 6ch), 4MP-lite 126fps (max 7ch), 1080p 120fps (max 8ch), 720p 240fps (max 8ch)
UI/Monitoring: UI5.0, Internet browser, RxCamView app
P/W reset: Press 3 seconds
Factory reset: Press 8 seconds

Display Output
BNC: 1-ch (704×576)
VGA: 1-ch (1080p, 720p, 1024×768)
HDMI: 1-ch (4K, 2K, 1080p, 720p)

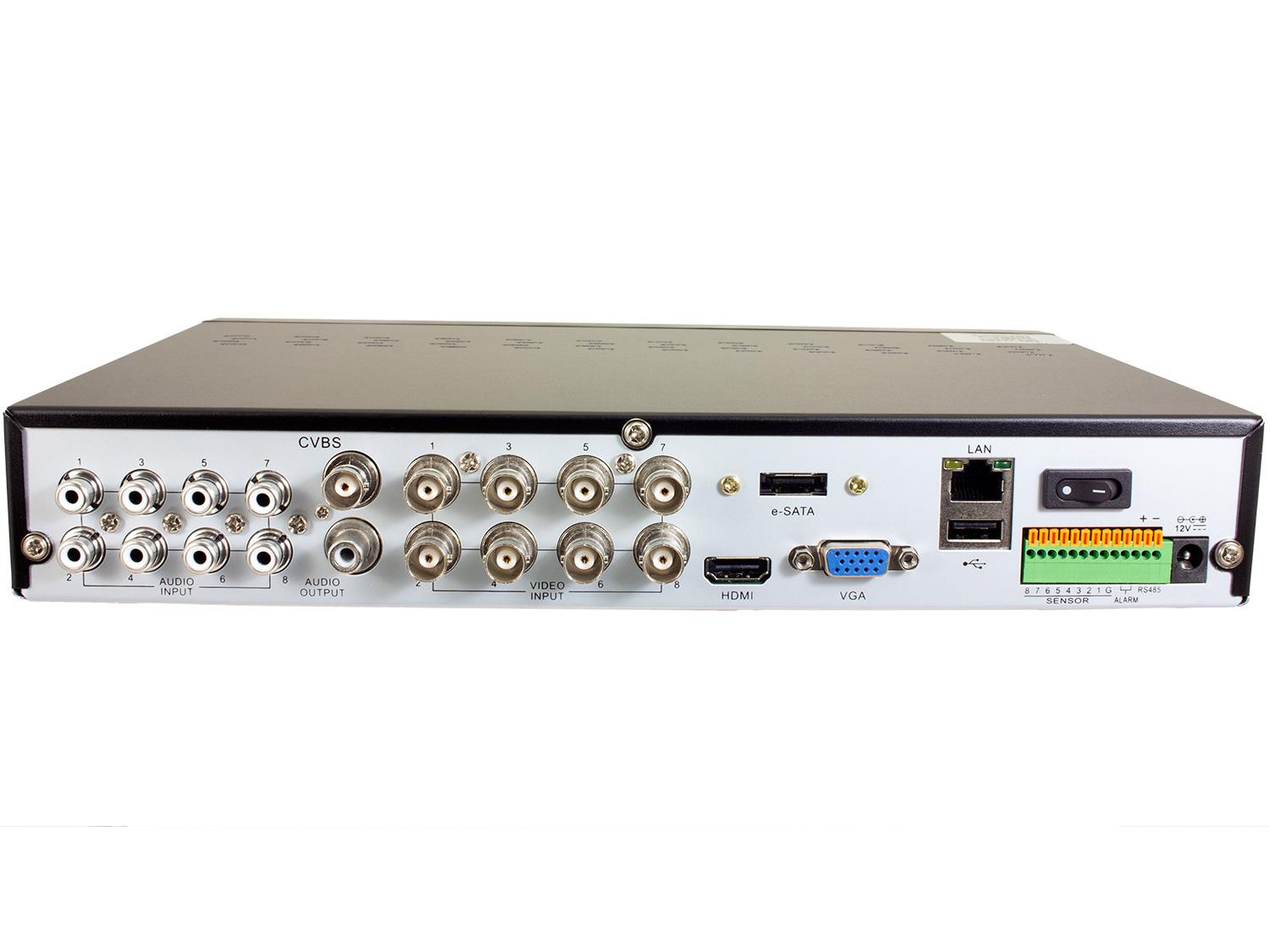

Connectivity
Ethernet: 1× RJ45 10/100 Base-T
USB: 1× USB 2.0 (front), 1x USB 3.0 (rear)
Audio: 8× in, 1× out
eSATA: 1× (optional, not supported)
HDD: 1× SATA HDD (up to 6TB)
RS485: 1×
Alarm I/O: 8× in, 1× out (optional, not supported by default)

General
Dimensions (W×D×H): 300×227×53mm
Input voltage/current: DC 12V 2A
Operating temperature: 0°C–40°C
Operating humidity: 90% RH

8-Channel CCTV Recorder
Connect up to 8 coax cameras to the recorder to view and record full quality footage

1080p HD Recording Resolution
The recorder supports Full 1080p HD video to ensure that you capture the most detailed footage

Connect up to 4 IP Cameras
You can also add up to four IP cameras to the recorder via your network (further configuration required)

4-in-1 Compatibility
Supports all major analogue camera video formats including CVBS, TVI, AHD and CVI

Plug-and-Play
Simply hook up the camera to the recorder using the BNC connection

Add up to 6TB of Storage
Supports an HDD up to 6TB in capacity for plenty of recording storage.

H.264 Compression
This latest encoding technology allows for more video to be stored in less storage space

Online Access
You can connect the recorder to your network for remote viewing on your PC, smartphone or tablet

HDMI Output
View the recorder's output on any monitor with HDMI in up to 4K

1x Gamut 8-Channel 4-in-1 HD CCTV DVR
