Gamut 5MP IP 4 Turret Camera CCTV System

Gamut are manufacturers of professional-grade security and CCTV solutions, all built to withstand the most demanding CCTV trade and commercial applications.

Since being founded in Bristol in 2009, Gamut cameras and recorders are used by a wide base of tradesmen and installers, servicing the home, business and local government markets. To ensure reliable build and picture quality, all products are put through a rigorous testing process both in-house and in the field before they're allowed to bear the Gamut badge.

Part of the range is this kit with four 5MP IP turret cameras and a 4-channel NVR, along with two UK mains power supplies and a USB mouse.

Each camera features a professional-grade imaging chip that captures pin-sharp images at 5MP. It boasts infrared LEDs to allow for up to 30 metres of night vision, so you can monitor both day and night.

Our 4-channel recorder supports up to 4K (8MP) and HD resolutions to ensure that you view and record the most detailed footage. To get the sharpest detail, you can live-view one 4K (8MP) camera at a time in full resolution.

You can view the recorder's output on any monitor with HDMI in up to 4K.

Need more storage? No problem. This recorder supports an HDD up to 8TB in capacity, so you won't run out of recording storage soon! Just pick an optional hard drive from the drop-down menu, suited to your needs.

Thanks to the latest H.264 video compression you can now store even more and better quality footage on the same storage space. So you don't need to worry you'll run out of space any time soon.

You can also rest assured that the overall setup will be worry-free. All you need to do is power the cameras over Ethernet cables, and you're good to go. Piece of cake!

What else can we talk about.. oh yes the weather? Our beloved British weather, along with worsening climate changes, can make for challenging conditions when hanging tech outdoors. No worries at planet Gamut! Come rain or shine, these sturdy cameras are housed in durable, weatherproof IP66-rated casing, so they're safe from even the worst of heat or stormy downpours.

And you can stay snug indoors or even be away on holiday, as you can access and control the cameras and recorder online! Simply connect the recorder to your network so you can view your footage from your PC, smartphone or tablet. Easy as pie!

Camera
Resolution: 5MP 2592(H)x1944(V)
Image Sensor: 1/2.7 Progressive CMOS
Min. Illumination: Colour 0.05lux @ F1.2(AGC ON); B/W 0 lux @ IR ON
Shutter: 1/5 ~ 1/20000s
Slow Shutter: Support
Lens: 3.6 mm H.FOV: 77°
Day & Night: IR cut filter with auto-switch: Day/Night/Auto/Schedule
Digital Noise Reduction: 3D DNR
WDR: Digital WDR
Video Compression: H.265/H.264
Video Bitrate: 256Kbps~8Mbps
Stream: Dual
Frame Rate: Mainstream (5MP 1~15fps 4MP 20fps 3.2.1MP 30fps)
5MP(2592x1944)4MP(2592x1520)
3MP(2048x1520)1080P(1920x1080)
960P(1280x960) 720P(1280x720)
Substream (1~15fps)
VGA(640x480)QVGA(320x240)
Image Settings: Flip mode Saturation Brightness Contrast Hue Sharpness adjustable
BLC: Support
Privacy Mask: Support
Video Analytics: N/A
Protocols: TCP/IPHTTPDHCPDNSDDNSRTP/RTSPPPPoE
SMTPNTPUPnPSNMPHTTPSFTP
System Compatibility: ONVIF( Ver 2.6 Profile S Profile G)
Interface: RJ45 10M / 100M Ethernet interface x1
Led : 18pcs(SMD)
IR Range: Up to 30m
SD Storage: no
Alarm Trigger: no
Built-in Mic: no
Audio: no
Video Output: no
Reset Button: no
PoE: yes
Weatherproof: IP66
Power Supply: DC 12V/POE
Consumption: 7W
Dimension: 100 X 90mm
Weight: appr. 360g
Storage Temperature: -30 to +60°C
Operating Temperature: -30 to +55°C

Recorder

Inputs
Video Resolution: 8MP, 5MP, 3MP, 2MP (1080p),1.3MP (960p), 1.0MP (720p)
Recording Bandwidth: Input: 50Mbps; Output: 64Mbps

Live/Playback
Audio compression: G.711a
Video compression: H.264
Frame rate: 4K: 45fps 4MP: 90fps; 2MP: 180fps
AI: Yes
Event motion detection: Sensitivity Level 1–8
Alarm notification: Video loss, beep, email, push notification to app
Playback function: Fast forward/backward (2×, 4×, 8×,16×); Slow forward (1/2×, 1/4×, 1/8×,& 1/16×)
Playback: Max 4ch playback
UI/Monitoring: Local UI5.0 web browser
Mobile app: RXCamView (iOS & Android)

Interface
VGA: 1× (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080）
HDMI: 1× (1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440, 3840×2160）
Connections: 4×PoE RJ45
Ethernet: 1×RJ45 10/100 Base-T
USB: 1×USB 2.0 (front); 1×USB 2.0 (rear)
Audio out: 1
eSATA: No
HDD: 1× HDD: up to 6TB; 2× HDD: up to 10TB
Line in: 1 optional
RS485: 1 optional
Alarm Input/out: No
Password Reset: Press 3 seconds
Factory Reset: Press 10 seconds

General
Dimensions (W×D×H): 300×227×53mm
Power: 1×HDD: DC 48V 1.2A; 2×HDD: DC 48V 2A
PoE Switch: 48V
Operating Temperature: 0°C–40°C
Operating Humidity: Less than 90%RH

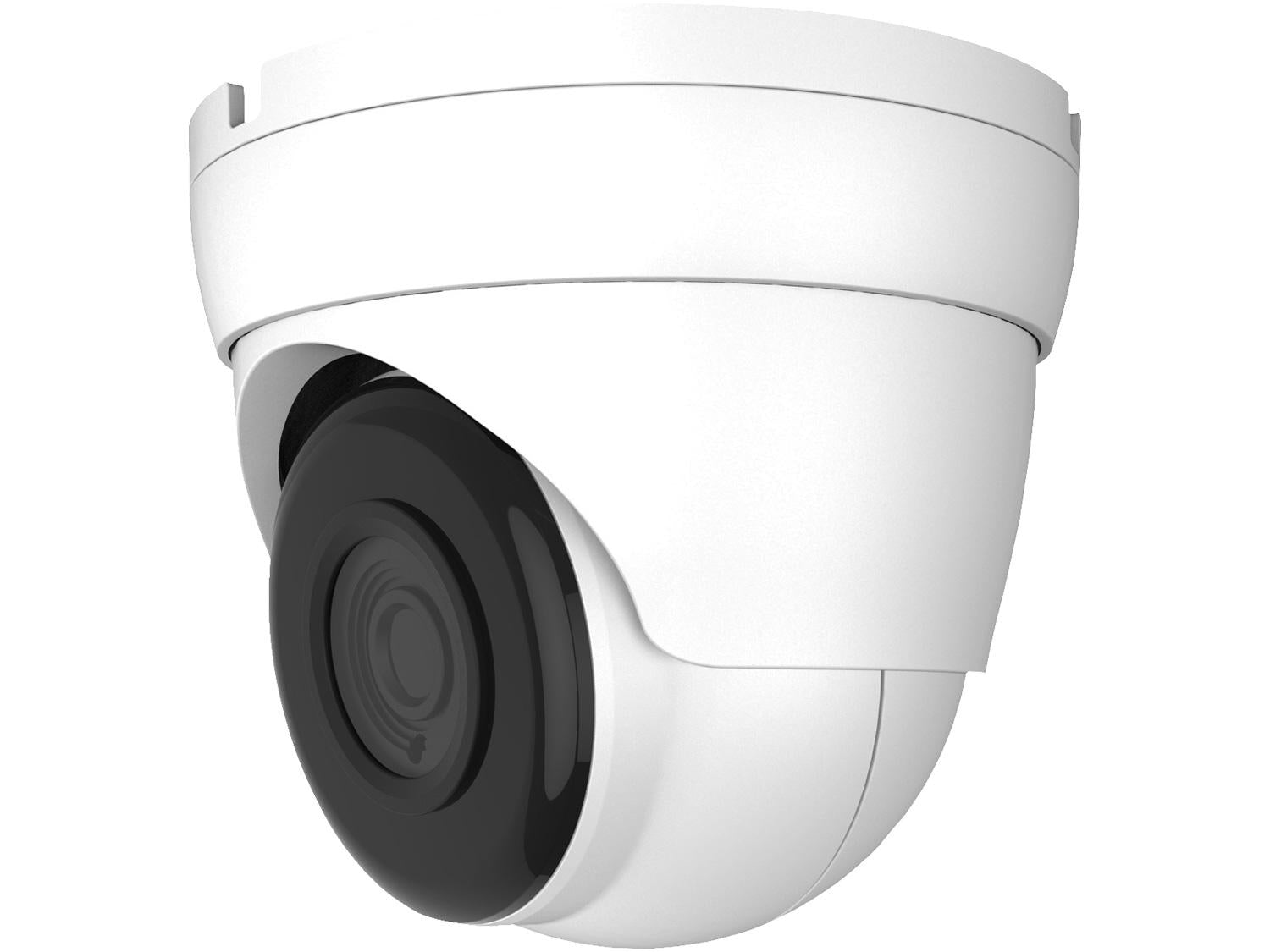

Gamut 5MP IP 4 Turret CCTV Camera
A part of our Gamut range, this is an excellent value camera and packs top-notch quality tech

5MP Video
This camera features a professional-grade imaging chip that captures pin-sharp images

Night Vision: 30m Range
Infrared LEDs provide up to 30 metres of night vision to ensure round-the-clock viewing

Weatherproof Casing
The durable camera casing is rated IP66, which means it can withstand even the worst of British weather

H.264 Compression
Uses the latest technology to send high-quality footage whilst saving bandwidth

Power-over-Ethernet (PoE)
No need for power supplies, simply power the camera over Ethernet cables (requires PoE recorder)

4-Channel CCTV Recorder
Connect up to four IP cameras to the recorder to view and record full quality footage

Up to 4K (8MP) Recording Resolution
The recorder supports up to 4K (8MP) and HD resolutions to ensure that you capture the most detailed footage

Live-View 4K Camera
You can live-view one 4K (8MP) camera at a time in full resolution to get the sharpest detail

Online Access
You can connect the recorder to your network for remote viewing on your PC, smartphone or tablet

HDMI Output
View the recorder's output on any monitor with HDMI in up to 4K

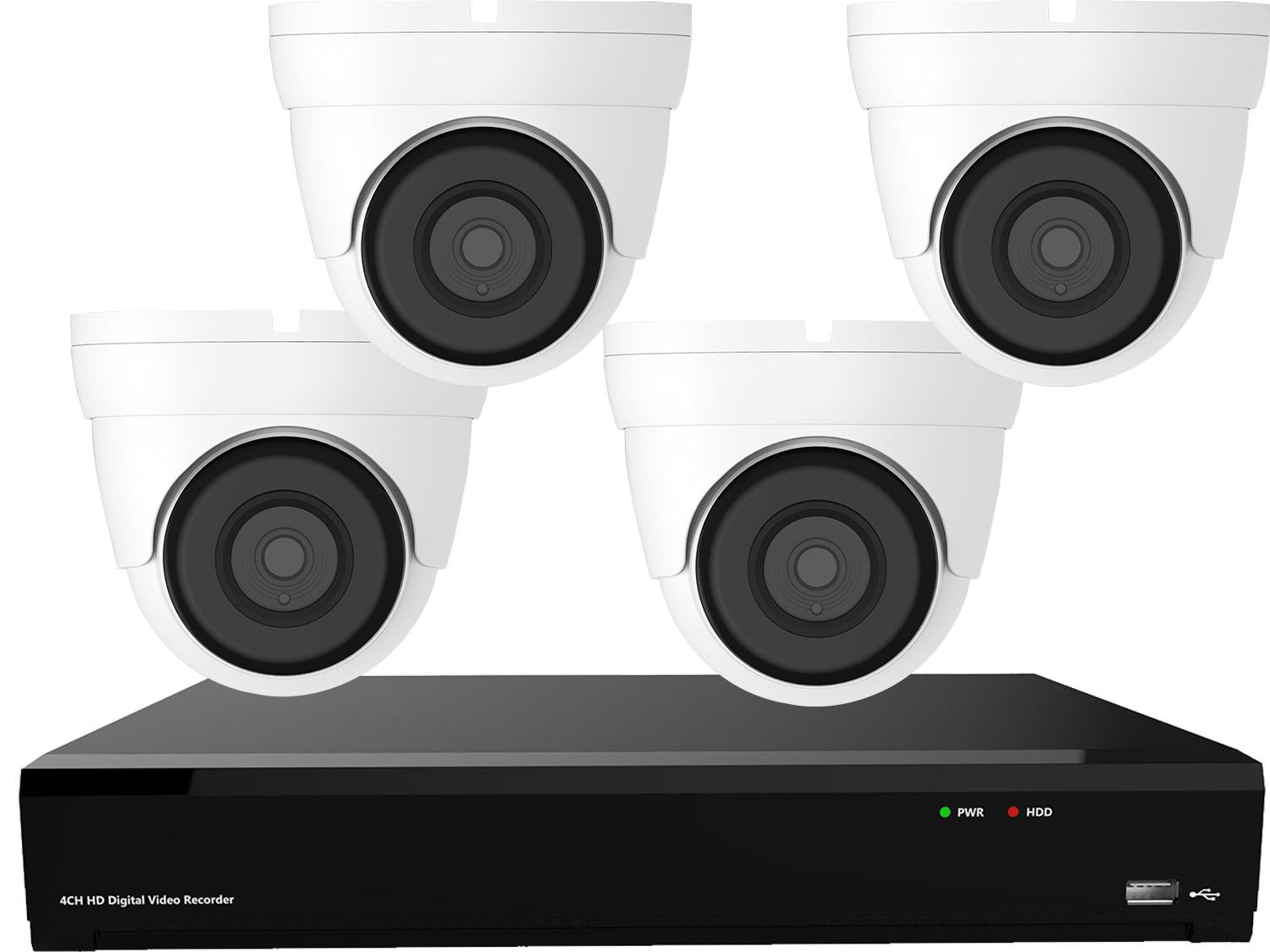

4x Gamut 5MP IP Turret CCTV Cameras
4x 10m network cable
1x Gamut 4-Channel IP CCTV NVR
1x USB mouse
4x Camera bracket
Quick start guide
