Gamut 2MP HD-TVI 2 Turret Camera CCTV System

Since being founded in Bristol in 2009, Gamut cameras and recorders are used by a wide base of tradesmen and installers, servicing the home, business and local government markets. To ensure reliable build and picture quality, all products are put through a rigorous testing process both in-house and in the field before they're allowed to bear the Gamut badge.

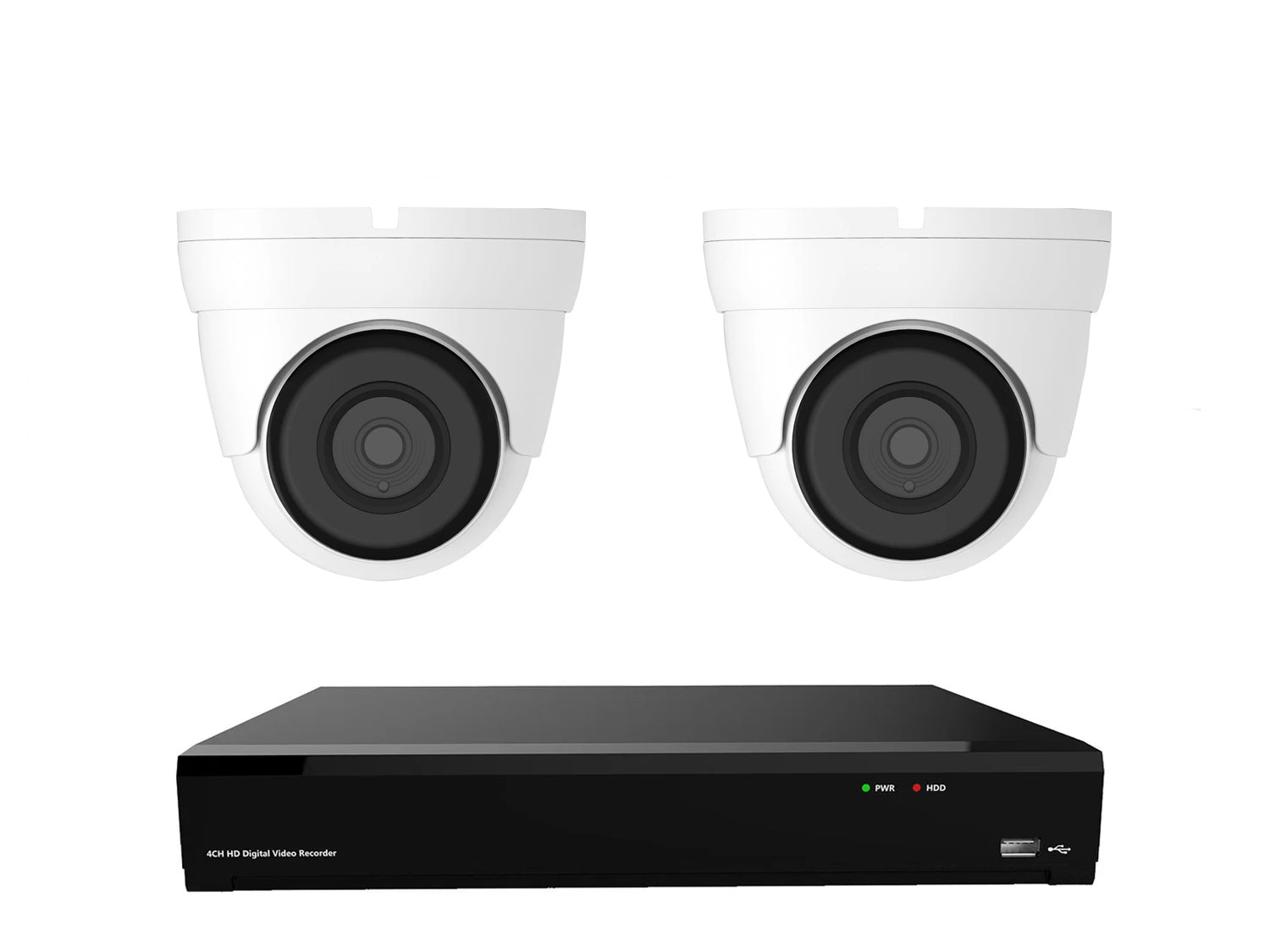

Part of the range is this kit with two 2MP HD turret cameras and a 4-channel DVR (2tb HDD), along with two UK mains power supplies and a USB mouse. This kit also comes with 2 20m BNC cables for the cameras, giving you a complete ready to go kit.

Each camera features a professional-grade imaging chip that captures pin-sharp images at 1080p. It boasts infrared LEDs to allow for up to 30 metres of night vision, so you can monitor both day and night.

Moreover, thanks to their 4-in-1 flexibility, the cameras are compatible with all major forms of coax CCTV technology. Just use the switch to set it to the right format. Works with TVI, AHD, CVI and CVBS.

Our 4-channel DVR also has this 4-in-1 compatibility so it can link to all major analogue camera video formats. It lets you connect up to four coax cameras to the recorder, and with a bit of extra configuration, you can also add up to two IP cameras via your network.

This recorder supports HD resolutions to ensure that you view and record the most detailed footage.

This highly flexible system is super easy to set up! All you need to do is hook up the cameras to the recording with the BNC connection.

And for even more storage space, you can benefit from the latest H.264 compression encoding technology. Thanks to this, you can store more and better quality video in less storage space.

You can view the recorder's output on any monitor with HDMI in up to 4K.

What else can we talk about.. oh yes the weather? Our beloved British weather, along with worsening climate changes, can make for challenging conditions when hanging tech outdoors. No worries at planet Gamut! Come rain or shine, these sturdy cameras are housed in durable, weatherproof IP66-rated casing, so they're safe from even the worst of heat or stormy downpours.

And you can stay snug indoors or even be away on holiday, as you can access and control the cameras and recorder online! Simply connect the recorder to your network so you can view your footage from your PC, smartphone or tablet. Easy as pie!

CAMERA
Image Sensor: SC2235H 1/2.7 Progressive CMOS
Signal System: PAL/NTSC
Frame Rate: AHD/TVI/CVI: P/@25fps N/@30fps
CVBS: 960H
Resolution: 2MP 1920x1080
Min.illumination: 0.05lux@F1.2(AGC ON)0Lux with IR ON
Shutter Time: 1/15 s to 1/50000 s
Lens: 2.8 mm 3.6 mm 2.8-12 mm fixed lens
Horizontal Field-of-View: H.FOV:102.94°(2.8)/ H.FOV:87.4°(3.6)/H.FOV:113.54°(W)–29.76°(T)(2.8-12)
Day & Night: IR cut filter 850nm
Synchronisation: Internal
DWDR: support

Menu
AGC: YES
Day/Night Mode: EXT/Auto/colour/BW (Black and White)
White balance: Auto/Manual
BLC: YES
S/N Ratio: 40dB
OSD: support

Interface
Video Output Termination: 1-channel BNC video output
Switch Button: AHD/TVI/CVI/CVBS

General
IP Rating: IP66
Power Supply: 12V
Power Consumption: MAX 3W
IR Range: up to 20M
Communication: Coax Protocol

RECORDER

Recording
Encoding Resolution: Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps; 8 MP@8 fps is only available for channel 1
Video Bit Rate: 32 Kbps to 6 Mbps
Dual Stream: Support
Stream Type: Video Video & Audio
Audio Compression: G.711u
Audio Bit Rate: 64 Kbps

Video And Audio
IP Video Input: 2-ch (up to 6-ch) IP enhanced mode on: 4-ch (up to 8-ch) each up to 4 Mbps
AHD Input: 5 MP 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps
CVI Input: 4 MP 1080p@25 fps 1080p@30 fps 720p@25 fps 720p@30 fps
CVBS Input: PAL/NTSC
HDMI/VGA Output: VGA: 1-ch 1920 x 1080/60Hz 1280 x 1024/60Hz 1280 x 720/60Hz 1024 x 768/60Hz HDMI/VGA simultaneous output HDMI: 1-ch 2K (2560 x 1440)/60Hz 1920 x 1080/60Hz 1280 x 1024/60Hz 1280 x 720/60Hz 1024 x 768/60Hz HDMI/VGA simultaneous output
Audio Input: 1-ch RCA (2.0 Vp-p 1 Kohm)
Audio Output: 1-ch RCA (Linear 1 Kohm)
Two-Way Audio: 1-ch RCA (2.0 Vp-p 1 Kohm) (using the first audio input)
Synchronous Playback: 4-ch
TVI Input: 8MP 5MP 4MP 3MP 1080p@30 fps 1080p@25 fps 720p@60 fps 720p@50 fps 720p@30 fps 720p@25 fps; 8MP signal input is only available for channel 1
CVBS Output: 1-ch BNC (1.0 Vp-p 75 ohm)resolution: PAL: 704 x 576 NTSC: 704 x 480

Network
Remote Connections: 128
Network Interface: 1x RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface
SATA: 1x SATA interface
Capacity: Up to 10 TB capacity
Alarm In/Out: 4/1
USB Interface: 1x USB 2.0; 1x USB 3.0

General
Power Supply: 12V DC
Working Temperature: -10 °C to +55 °C
Working Humidity: 10% to 90%
Weight (Without HDD): 1.16 kg
Consumption (Without HDD): 10 W
Dimensions (W x D x H): 315 x 242 x 45 mm

Gamut 2MP HD-TVI 2 Turret CCTV Cameras
A part of our Gamut range, these are excellent value cameras and pack top-notch quality tech

2MP 1080p HD Video
These cameras feature professional-grade imaging chips that capture pin-sharp images

Night Vision: 30m Range
Infrared LEDs provide up to 30 metres of night vision to ensure round-the-clock viewing

Weatherproof Casing
The durable camera casing is rated IP66, which means they can withstand even the worst of British weather

4-in-1 Technology
This is compatible with all major forms of coax CCTV technology. Just use the switch to set it to the right format. Works with TVI, AHD, CVI and CVBS

Plug-and-Play
Simply connect up to power and into your recorder with the BNC connection to get the cameras running

4-Channel CCTV Recorder
Connect up to four coax cameras to the recorder to view and record full quality footage

Connect up to 2 IP Cameras
You can also add up to two IP cameras to the recorder via your network (further configuration required)

4-in-1 Compatibility
Supports all major analogue camera video formats including CVBS, TVI, AHD and CVI

Add up to 6TB of Storage
Supports an HDD up to 6TB in capacity for plenty of recording storage.

H.264 Compression
This latest encoding technology allows for more video to be stored in less storage space

Online Access
You can connect the recorder to your network for remote viewing on your PC, smartphone or tablet

HDMI Output
View the recorder's output on any monitor with HDMI in up to 4K

2x Gamut 2MP HD-TVI Turret CCTV Cameras
2x UK mains power supplies
2x 20m BNC pro grade cables
1x Gamut 4 Channel DVR
1x USB mouse
2x Camera brackets
Quick start guide
