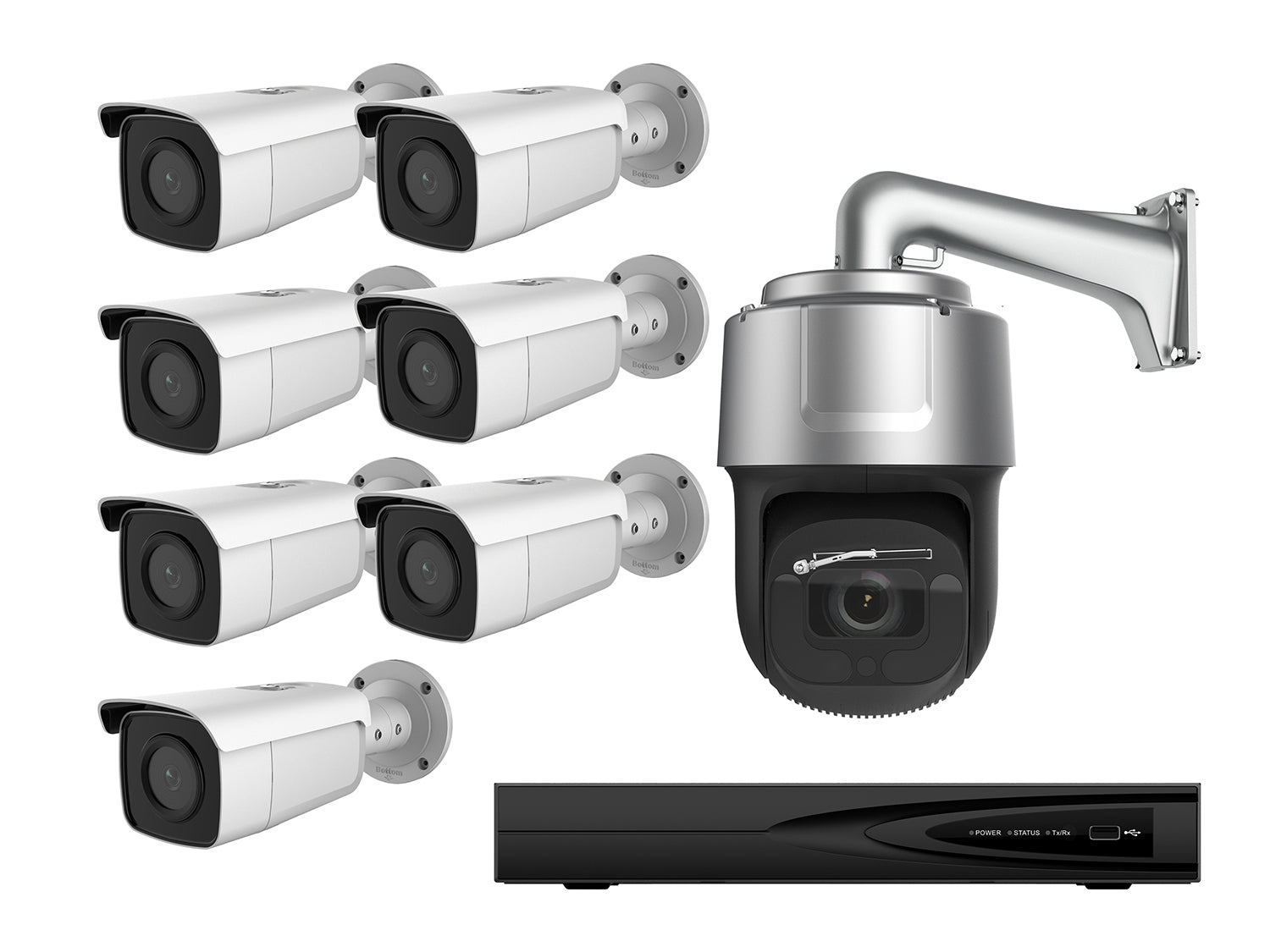

Fully Capable CCTV System
We've put this 8 camera system together to enable those looking for the best security solution for their farm site to have it all in one!
Super Powerful PTZ Camera
With 42× optical zoom with a zoom speed time of just 5 seconds from wide-angle to telephoto, as well as 360° pan and a vast array of features, this PTZ camera is a serious workhorse!
7 Supporting Bullet Cameras
Alongside the professional PTZ camera, we've included seven additional bullet-style cameras to provide your CCTV system with plenty of extra angles to watch over your farm site.
500m Night Vision range
The PTZ camera boasts an absolutely huge up half a kilometre infrared night vision range providing an excellent nighttime surveillance capability. Additionally, the three supporting bullet cameras provide up to 60 metres themselves.
4MP Video
All the cameras capture video at 2560×1440 resolution, twice the detail of Full HD, to give you plenty of detail to get a very clear view of animals even when zoomed out.
Recorder with Capacity for 16 Cameras
We've included an advanced Network Video Recorder (NVR) to provide you with all the CCTV recording capabilities you expect. This is preinstalled with a 4-terabyte hard drive for plenty of recording storage.
Power-over-Ethernet (PoE)
No need for power supplies to the bullet cameras as the NVR supplies PoE to them. An additionally power injector is included to ensure the PTZ camera gets the juice it needs.
Programmable Movements
Store up to 300 preset camera positions on the PTZ camera, as well as multiple patrols and patterns all configured to your specifications.
Check-in via the App
Use the PC or mobile app to view your camera as well as control the PTZ camera from anywhere with an internet connection.
Smart Detection
Includes a whole host of smart detection tools to allow you to track what you need and leave out what you don't need to know about!
MicroSD Storage
Built-in MicroSD slots in the cameras allow an additional source of recording storage, which can be used as an emergency backup in addition to the recorder.

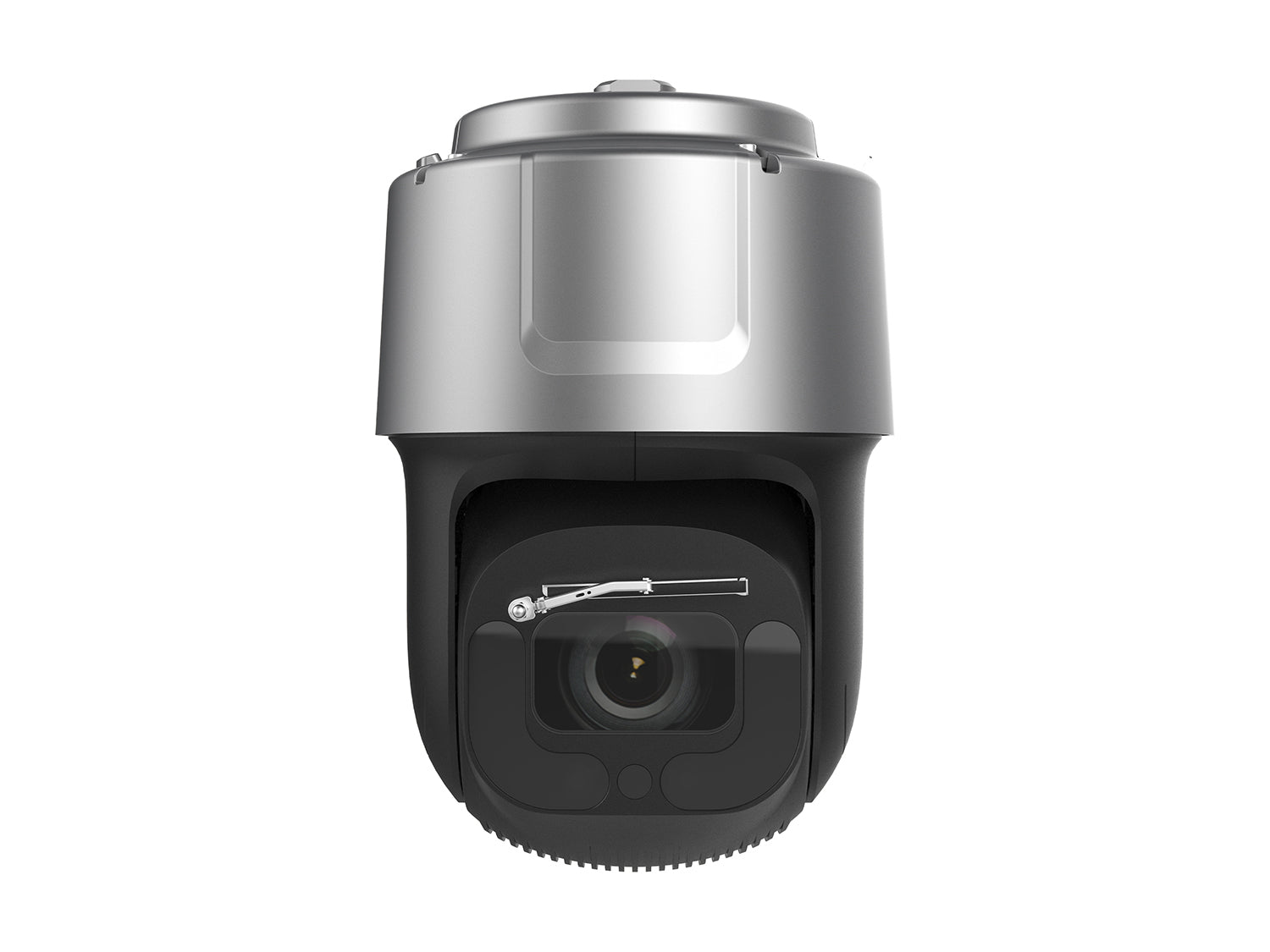

PTZ CAMERA
Camera
Image Sensor: 1/1.8" progressive scan CMOS
Min. Illumination: Colour: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed: 1/1s~ 1/30,000s
Slow Shutter: yes
Focus: auto; manual; semi-auto
Day & Night: ICR
Day/Night Switch: day; night; auto; scheduled-switch
BLC: yes
WDR: 140 dB WDR
HLC: yes
3D DNR: yes
Defog: yes
EIS: Yes. Built-in gyroscope to improve EIS performance.
Regional Exposure: yes
Regional Focus: yes
Image Settings: saturation; brightness; contrast; sharpness
White Balance: auto; MWB; ATW; indoor; outdoor; fluorescent lamp; sodium lamp
Digital Zoom: 16x
Optical Zoom: 42x
Privacy Mask: up to 24 masks; mask colour configurable; polygon region; mosaic mask
DORI:
Detect(25px/m): 2979.3m
Observe(63px/m): 1182.3m
Recognize(125px/m): 595.9m
Identify(250px/m): 297.9m
SNR: ≥55dB
General Function: mirror; password protection; video tampering alarm; watermark; IP address filter
Optical Defog: yes
Lens
Focal Length: 6.0 mm to 252 mm, 42 × Optical
Zoom Speed: approx. 4.9 s
Horizontal field of view: 56.6° to 1.7° (wide-tele)
Vertical field of view: 33.7° to 0.9° (wide-tele)
Diagonal field of view: 63.4° to 1.9° (wide-tele)
Aperture: f1.2
Illuminator
IR Distance: 500 m
Smart IR: yes
PTZ
Movement Range (Pan): 360°
Movement Range (Tilt): -20° to 90° (auto flip)
Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Proportional Zoom: yes
Presets: 300
Patrol Scan: 8 patrols, up to 32 presets for each patrol
Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
Power-Off Memory: yes
Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning: yes
PTZ Status Display: yes
Preset Freezing: yes
Scheduled Task: preset; pattern scan; patrol scan; auto-scan; tilt scan; random scan; frame scan; panorama scan; dome reboot; dome adjust; aux output
Video
Max. Resolution: 2560×1440
Main Stream: 25 fps (2560×1440, 1920×1080, 1280×960, 1280×720);
Sub-Stream: 25 fps (704×576, 640×480, 352×288)
Third Stream: 25 fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288)
Video Compression: H.265; H.264; MJPEG
Video Bit Rate: 32 kbps to 16384 kbps
H.264 Type: baseline profile; main profile; high profile
H.265 Type: main profile
H.264+: yes
H.265+: yes
SVC: yes
ROI: dynamic face tracking; fixed region; dynamic license plate tracking
Audio
Audio Compression: G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
Smart Features
Face Capture: Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
Face Comparison: yes
Road Traffic: Support vehicle detection (license plate number, vehicle model, and vehicle colour recognition)
Basic Event: motion detection; video tampering alarm; exception; alarm input and output
Smart Event: vandal-proof alarm; Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection; unattended baggage detection; object removal detection
Smart Tracking: manual tracking; event tracking; support patrol tracking among multiple detection scenes;auto-tracking
Smart Record: ANR; Dual-VCA
Alarm Linkage: preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording
Network
Network Storage: NAS (NFS, SMB/ CIFS)
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API: Open-ended API, ONVIF (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
Simultaneous Live View: Up to 20 channels
User/Host: Up to 32 users. 3 levels: Administrator, Operator and User
Smooth Streaming: yes
Security Measures: Authenticated username and password; MAC address binding; HTTPS encryption;802.1X authenticated access; IP address filter
Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface: RJ45, self-adaptive 10M/100M Ethernet port
On-Board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Alarm Input: 7 alarm inputs
Alarm Output: 2 alarm outputs
Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output: 1 audio output, line level, impedance: 600 Ω
Video Output: 1.0V[p-p]/75Ω; PAL; NTSC; BNC connector
RS-485: HIKVISION, Pelco-P, Pelco-D, self-adaptive
General
Power: 24V AC (Max. 60 W, including max. 15 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 15 W for IR and max. 8 W for heater)
Operating Temperature: -40°C to 70°C
Operating Humidity: ≤ 95%
Wiper: Yes. Rain-sensing auto control
Material: ADC12
Dimensions: Φ 267 mm × 430 mm
Approx. 9.6 kg
Protection: Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5; IP67 Standard

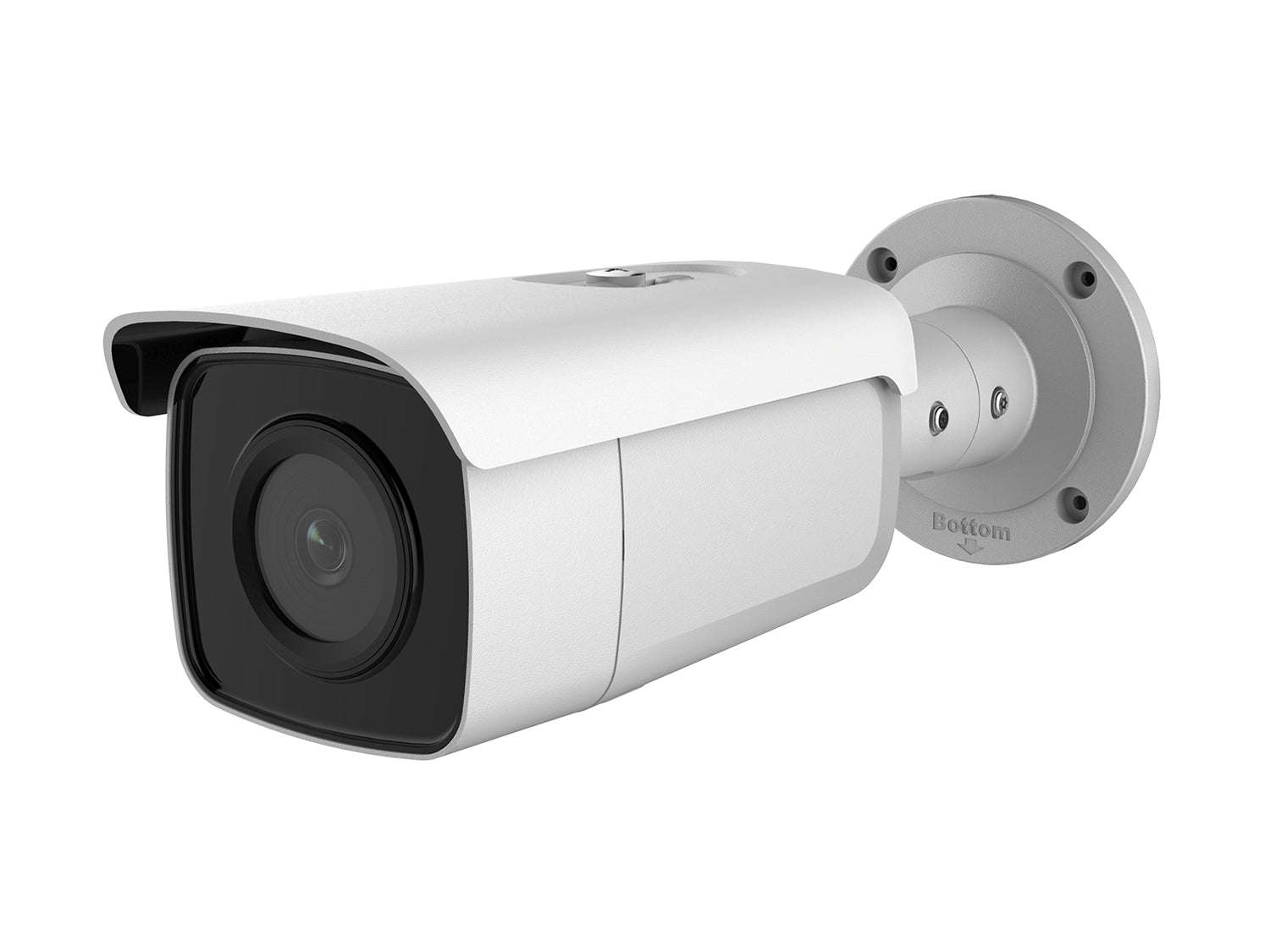

BULLET CAMERA
Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688×1520
Min. Illumination: Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV: 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
Lens Mount: M12
Iris Type: Fixed
Aperture: f1.4
DORI
DORI: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
Illuminator
Supplement Light Type: IR
Supplement Light Range: Up to 60 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Video
Main Stream: 25 fps (2688×1520, 1920×1080, 1280×720)
Sub-Stream: 25 fps (640×480, 640×360)
Third Stream:10 fps (1920×1080, 1280×720, 640×480, 640×360)
Video Compression: H.265/H.264/H.265+/H.264+/MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: IE 10+, Chrome 57.0+, Firefox 52.0+
Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in micro SD slot, up to 256 GB
Reset Key: Yes
Event
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection
Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Deep Learning Function
Face Capture: Yes
General
Power: 12V DC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W
Dimensions: Ø105 mm × 289.5 mm
Package Dimensions: 386 mm × 156 mm × 155 mm
Weight: Approx. 1075 g
With Package Weight: Approx. 1584 g
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC/EN 60950-1)
Environment: CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)

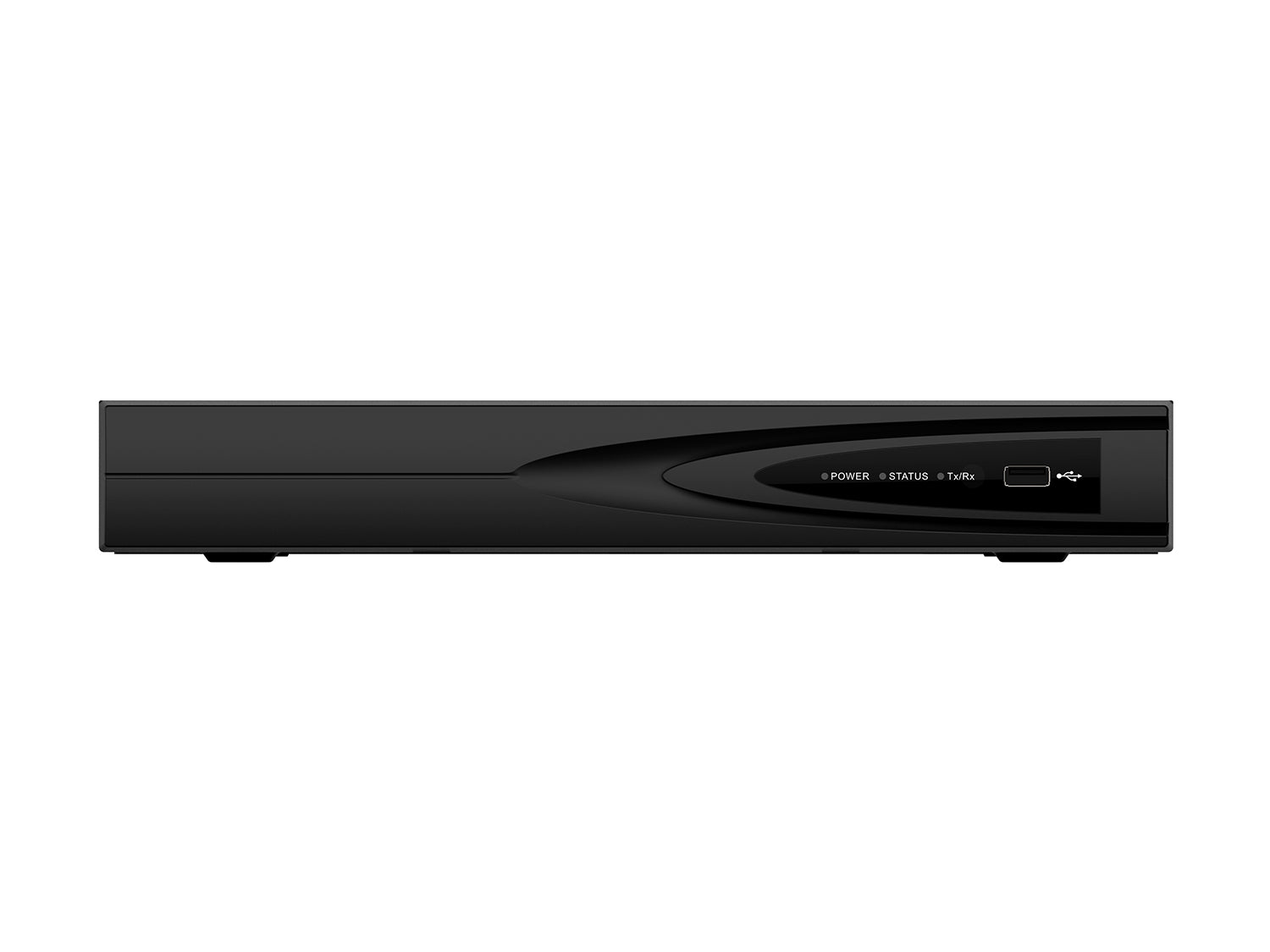

RECORDER
Video And Audio
IP Video Input: 8-ch
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 80 Mbps
HDMI Output: 1-ch, 4K, 2K, 1080p, 1600×1200, 1280×1024, 1280×720
VGA Output: 1-ch, 1080p, 1280×1024, 1280×720
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding Format: H.265+/H.265/H.264+/H.264
Decoding Capability: 1-ch @ 8MP (30 fps)/5-ch @ 1080p (30 fps)
Synchronous Playback: 8-ch
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface: 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface: 8× RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 75W
RAID
RAID Type: No
Auxiliary Interface:
SATA: 1 SATA interface
Capacity: Up to 8TB capacity for each disk
USB Interface: 2× USB 2.0
Alarm In/Out: N/A (4/1 is optional)
General
Power Supply: 48V DC, 1.88 A
Consumption: ≤ 10 W (without enabling PoE)
Working Temperature: -10 to +55º C
Working Humidity: 10 to 90 %
Chassis: 1U chassis
Dimensions (W×D×H) 320×240×48 mm
